Figure 3

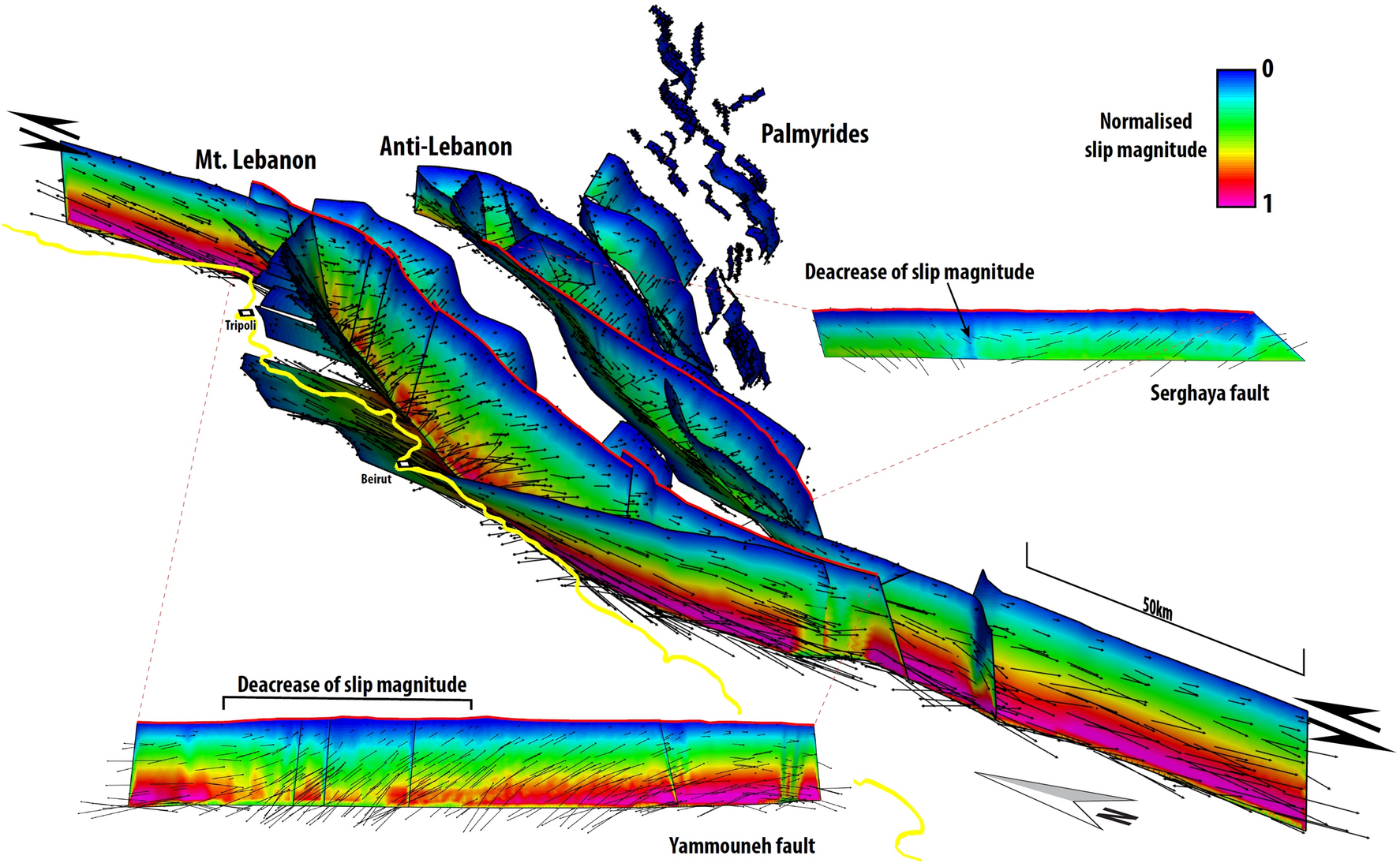

Slip magnitude. Three-dimensional (3D) Eastward view of Lebanon Restraining bend and Palmyrides with normalised slip magnitude plot. Black vectors represent orientation of displacement along all faults. Yellow line shows the coastline. Yammouneh and Serghaya are also presented in the side view. Serghaya fault slip magnitude decreases in the area where fault is sub-vertical. Yammouneh fault slip magnitude decreases dominantly due to a change of the strike of the fault. Northern and Southern parts of the Yammouneh fault are oblique to σ1, while its central part is almost orthogonal.
