Figure 1

From: Prediction of oxygen requirement in patients with COVID-19 using a pre-trained chest radiograph xAI model: efficient development of auditable risk prediction models via a fine-tuning approach

Figure 1The alt text for this image may have been generated using AI.

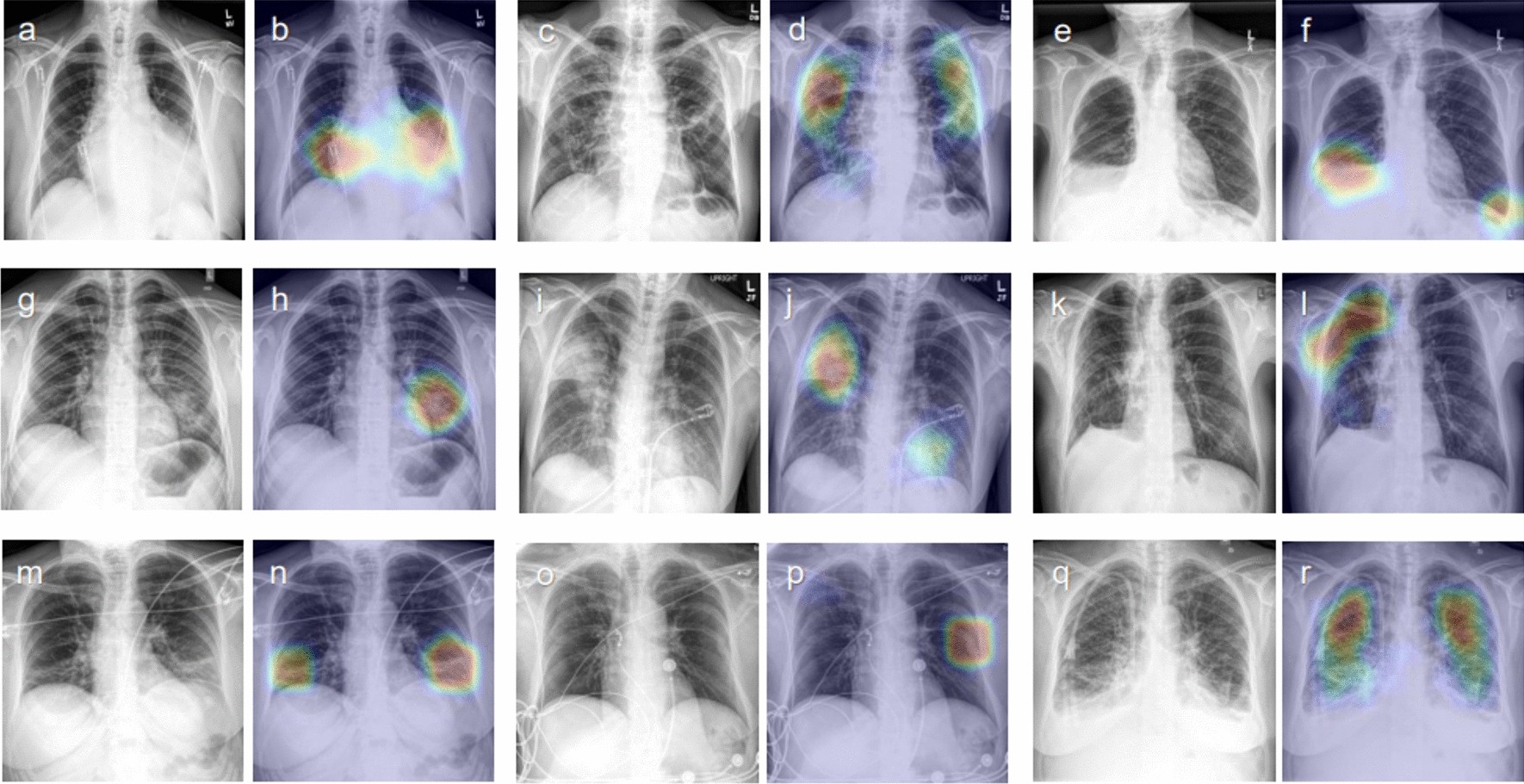

Representative class activation maps (CAMs) with correct lesion localization. (a,b) Cardiomegaly (PA), (c,d) Other interstitial opacity (PA), (e,f) Pleural effusion (PA), (g,h) Pneumonia (PA), (i,j) Pneumonia (AP), (k,l) Pneumothorax (PA), (m,n) Atelectasis (AP), (o,p) Fracture (AP), (q,r) Pulmonary edema (PA).
