Figure 7
From: Spattering mechanism of laser powder bed fusion additive manufacturing on heterogeneous surfaces

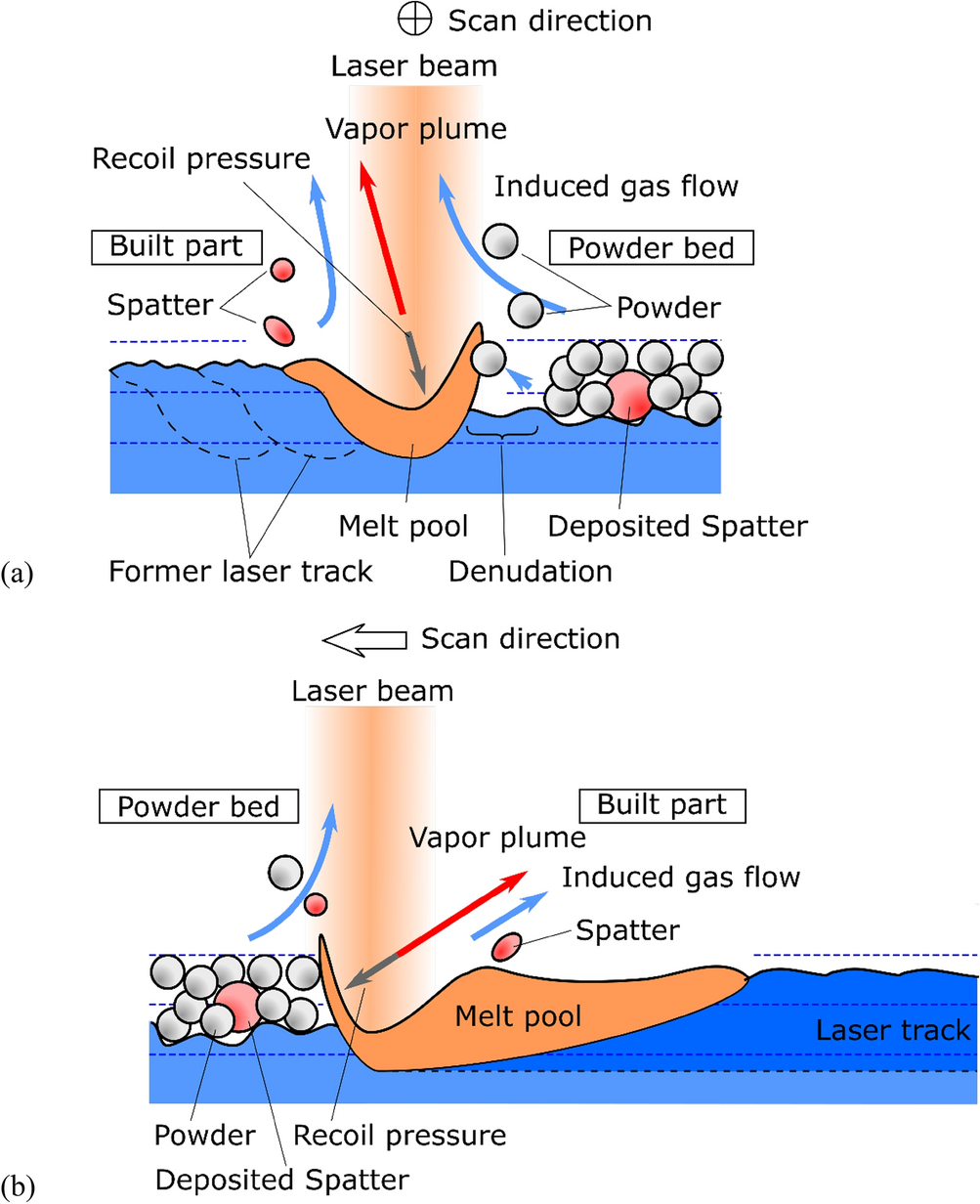

Schematic of the melt pool behavior and spatter formation. (a) The transverse section of the laser scan direction and (b) longitudinal section; melt pool length is shortened because of space limitations.
