Figure 1
From: Substrate and low intensity fires influence bacterial communities in longleaf pine savanna

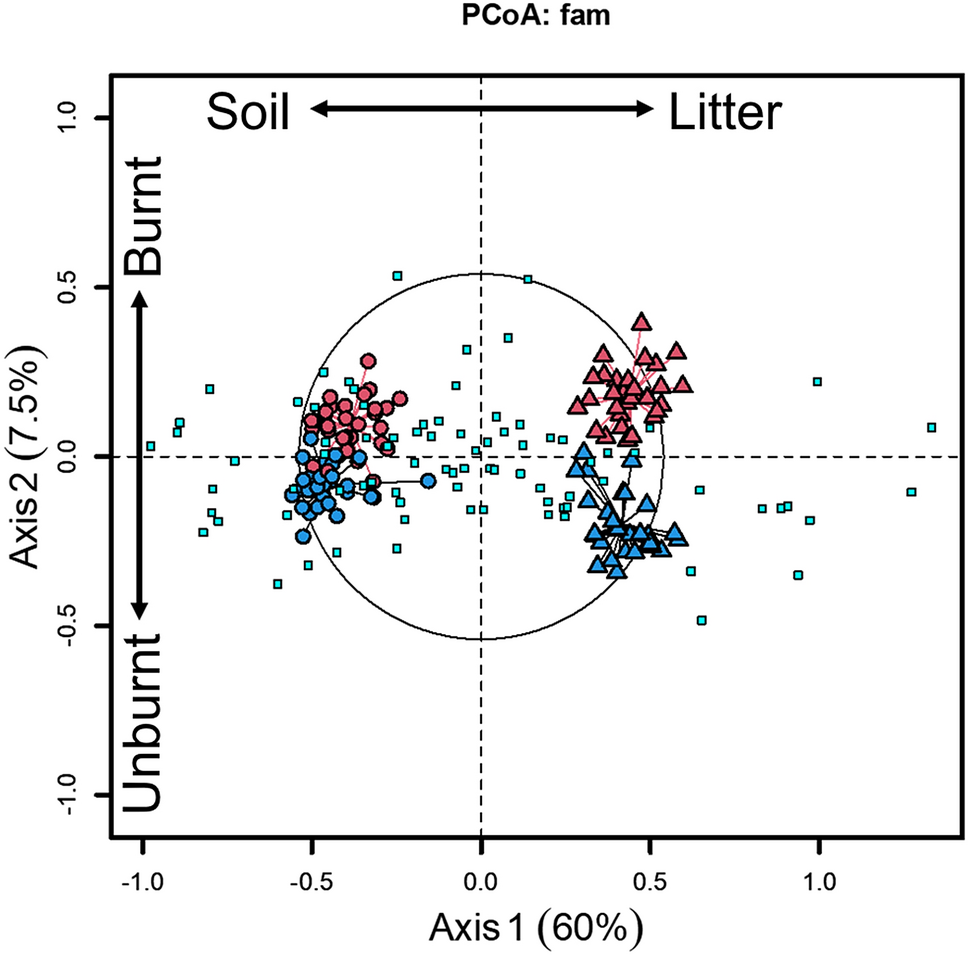

Principle Coordinate Analysis of plots driven by taxonomic family. First two axes of PCoA differentiated plots by community relative abundances, where increasing distances among points indicate greater differences between plots. Percent of total variance explained by each axis is given in parentheses. Labeled arrows parallel to axes indicate the associated treatment with the respective axis. Red points denote burnt plots and blue unburnt; triangles denote litter and circles soil. Cyan squares are each a family; large distances from the origin indicates influence on nearby treatment differences.
