Figure 3
From: Experimental climate change impacts on Baltic coastal wetland plant communities

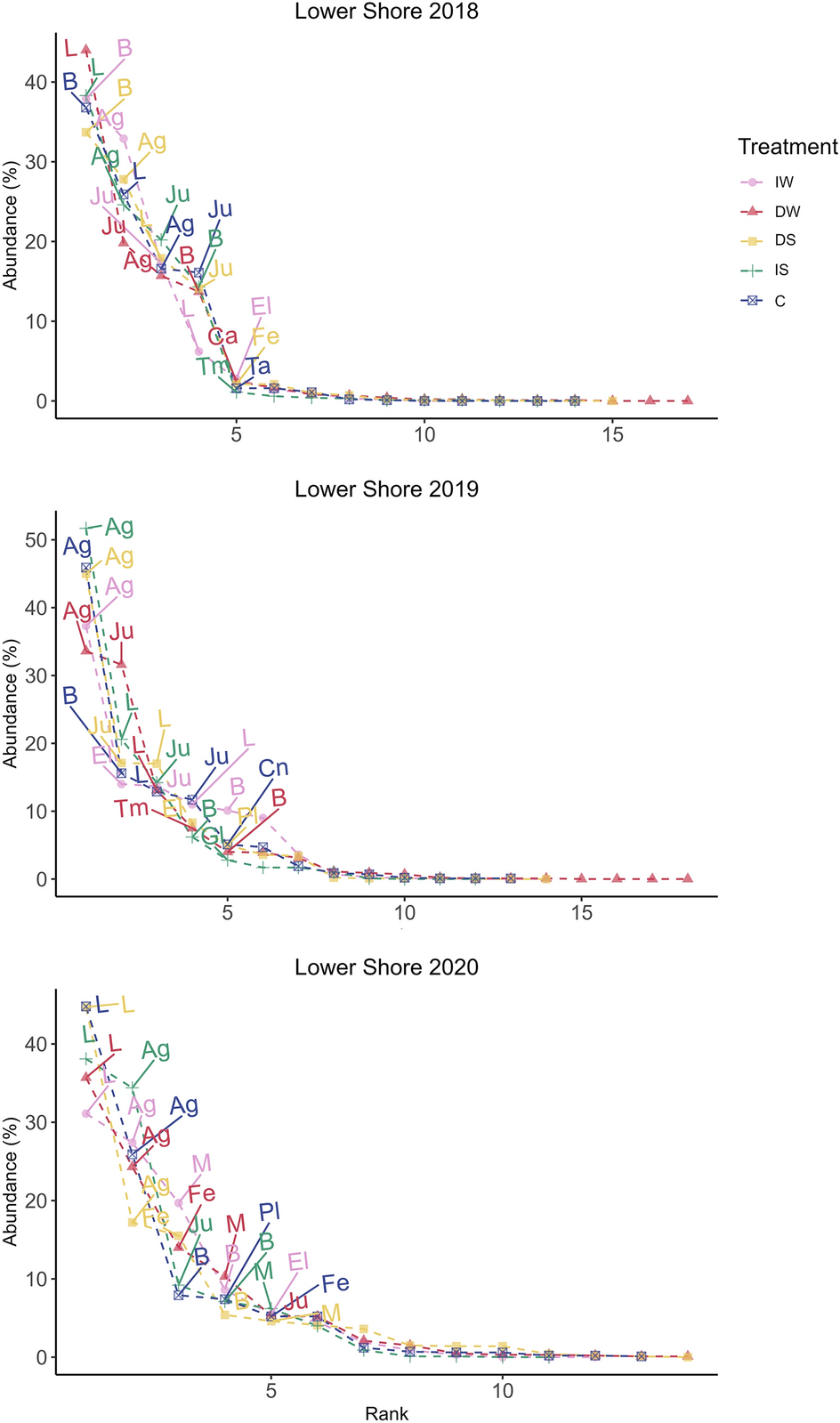

Rank abundance curve of the Lower Shore community. Mean abundance as percentage cover (n = 3) for August is on the y-axis, while species are ranked consecutively on the x-axis. B Bare gound, Ag Agrostis stolonifera, Ju Juncus gerardii, El Eleocharis palustris, Pl Plantago maritima, Fe Festuca rubra, Tm Triglochin maritima, L Litter; Ca Carex nigra, Gl Glaux maritima, M Moss, Cn Cnidium dubium. Pink: increased water level (IW); red: decreased water level (DW); yellow: decreased salinity (DS); green: increased salinity (IS); blue: control (C).
