Figure 4
From: Effect of benznidazole on cerebral microcirculation during acute Trypanosoma cruzi infection in mice

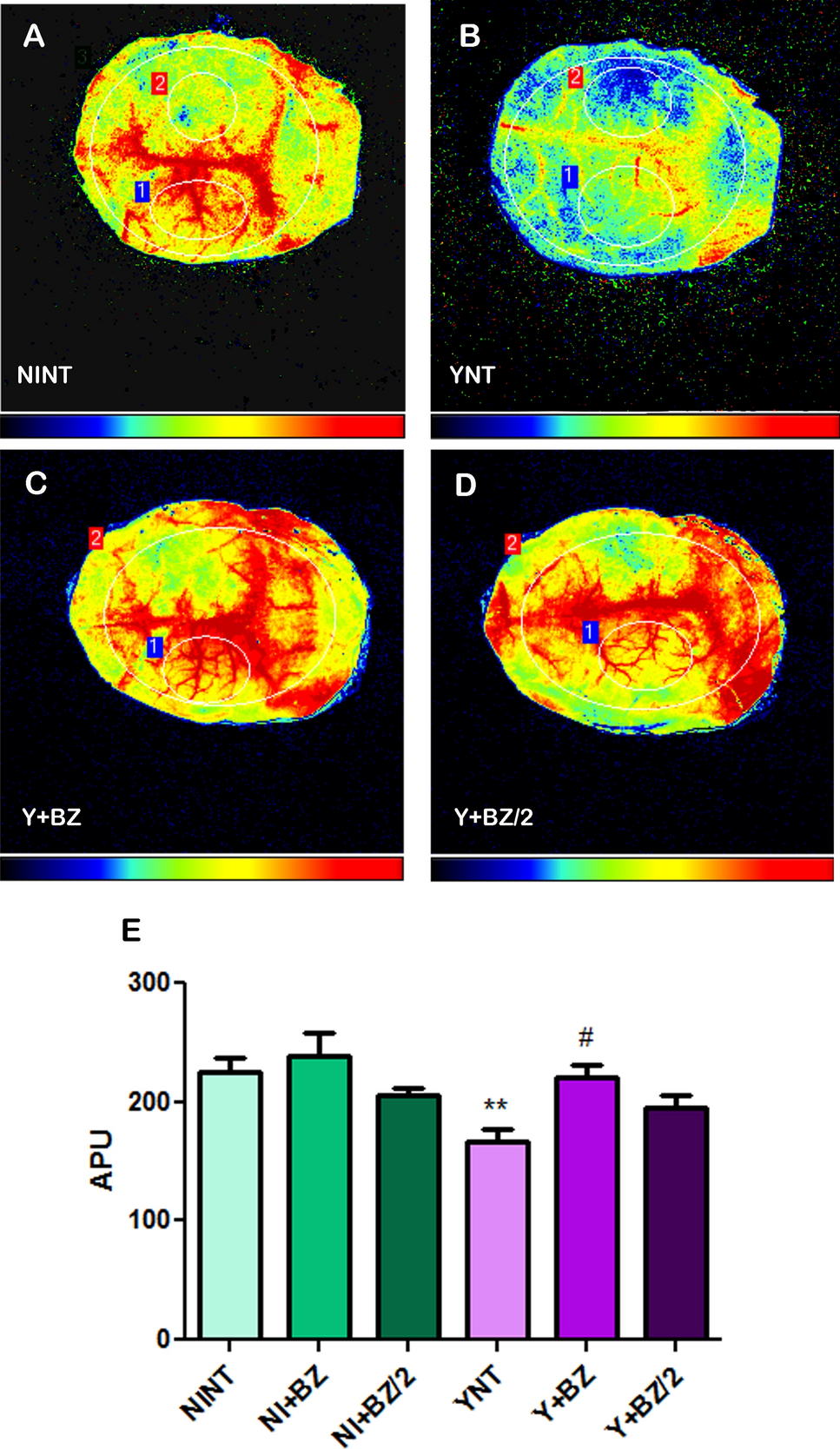

Analysis of cerebral blood flow by fluxometry at 15 dpi, showing decreased cerebral blood flow in the YNT group (B) when compared to NINT group (A). Treatments with BZ (C and D) prevented this decrease. Graphic indicates brain blood flow through arbitrary perfusion unit (APU) (E). NI, non infected; Y, infected; NT, non treated; BZ, treated with benznidazole (100 mg/kg/day); BZ/2, treated with benznidazole (50 mg/kg/day); dpi, days post-infection. *when compared to NINT; #when compared to YNT *p < 0.05, **p < 0.01, ***p < 0.001.
