Figure 5
From: Particle exposure risk to a lavatory user after flushing a squat toilet

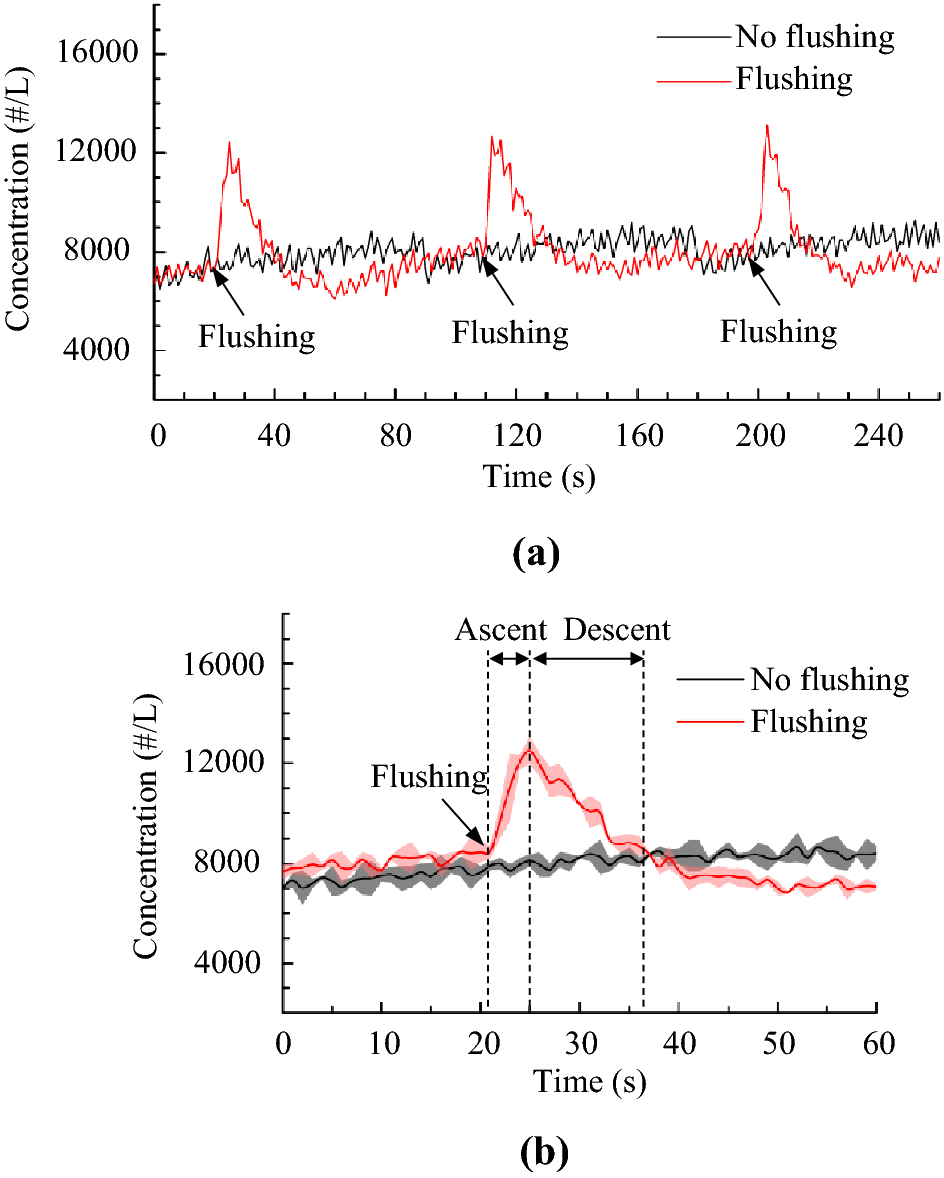

Measured temporal concentrations of particles with sizes ranging from 0.3 μm to 25 μm: (a) at the middle sampling port, (b) averaged particle concentrations at three sampling ports for three repeated flushing processes, where the shaded bands represent standard deviations.
