Figure 1

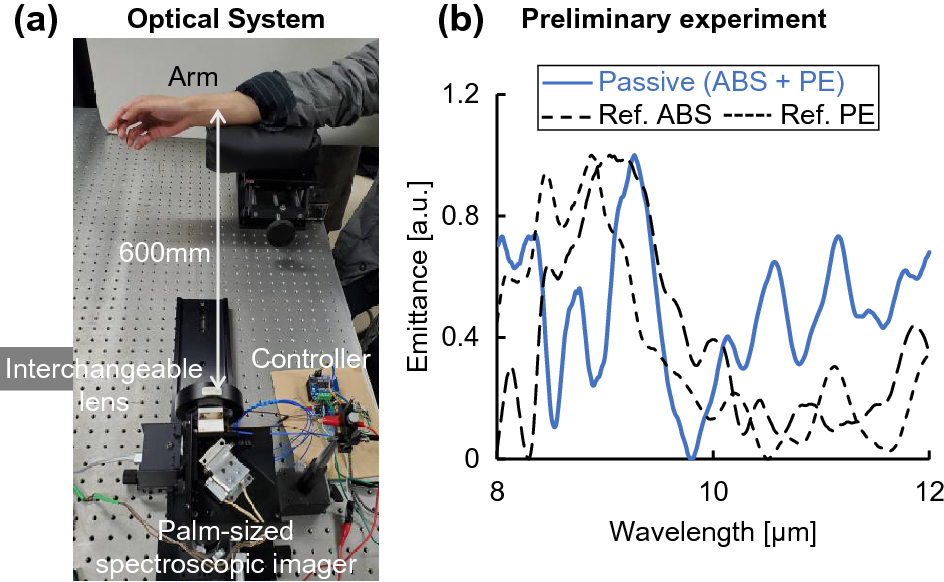

Optical system of mid-infrared passive spectroscopic imaging using subject A's wrist and back of the hand as measurement sites. (a) The optical system. (b) Preliminary experimental results using plastic (8-mm ABS plate and 1.20-mm PE thin film). The spectrum in (b) was normalized from 0 to 1.
