From: Vitreous protein networks around ANG2 and VEGF in proliferative diabetic retinopathy and the differential effects of aflibercept versus bevacizumab pre-treatment

Figure 1

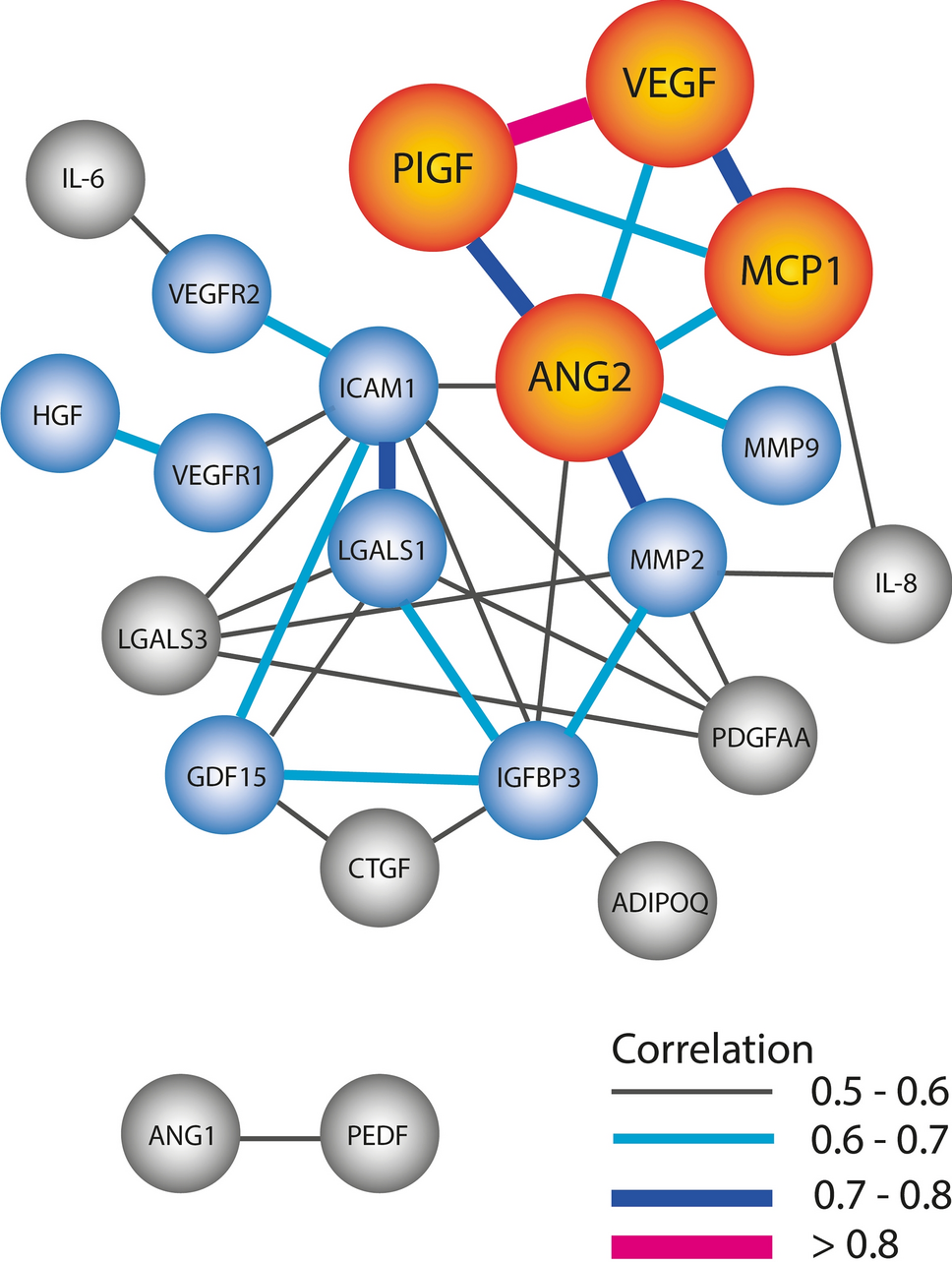

Co-regulation of proteins. Protein concentrations in the untreated PDR group were analysed using Pearson’s regression. This forms a network of proteins. Only correlations and proteins that had a correlation coefficient higher than 0.4 and P value < 0.01 are shown. Orange indicates the proteins that had the strongest correlation with other proteins; blue circles had at least one correlation > 0.6; grey: only moderate correlations. Line thickness indicates the strength of the correlation, with correlation coefficients between 0.4 and 0.5 being moderate and > 0.6 strong.
