Figure 3
From: A fully-automated paper ECG digitisation algorithm using deep learning

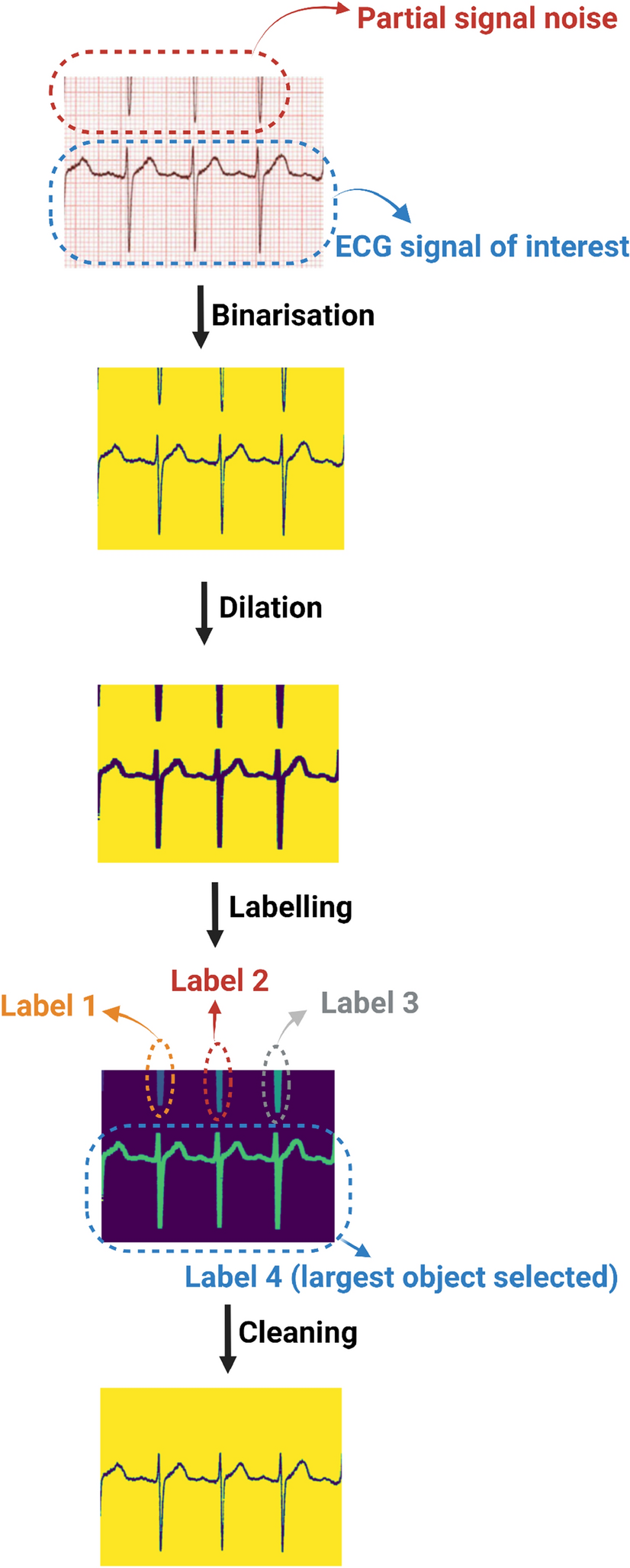

The cleaning process of a cropped ECG image. Following the cropping of the region of interest, a dilation process connects the possible breaking points horizontally to obtaining the full ECG signal. Thereafter, the labelling process identifies the largest object as the signal of interest. Finally, artefacts within the cropped image are removed to retain the signal of interest.
