Figure 8

From: Sex differences in the inflammatory response of the mouse DRG and its connection to pain in experimental autoimmune encephalomyelitis

Figure 8

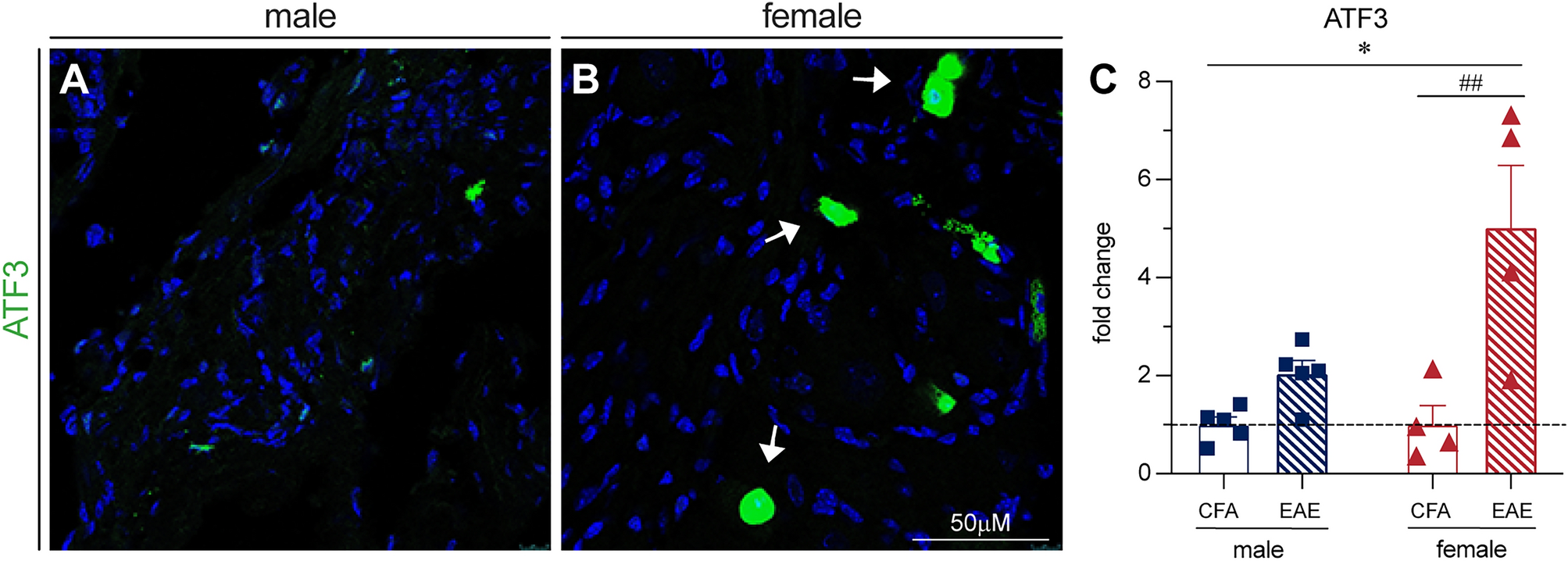

ATF3 staining increases in female EAE DRGs in vivo. (A,B) ATF3 staining is increased in female EAE DRGs compared to males. Arrows indicate examples of positive staining. (C) Bars indicate mean (fold change of ATF3-positive cells/DRG area, normalized to CFA control) ± standard error mean (SEM). Dashed line represents CFA condition mean. n = 5 animals in one experiment. ##P < 0.01 treatment factor, *P < 0.05 sex factor, two-way ANOVA.
