Figure 4

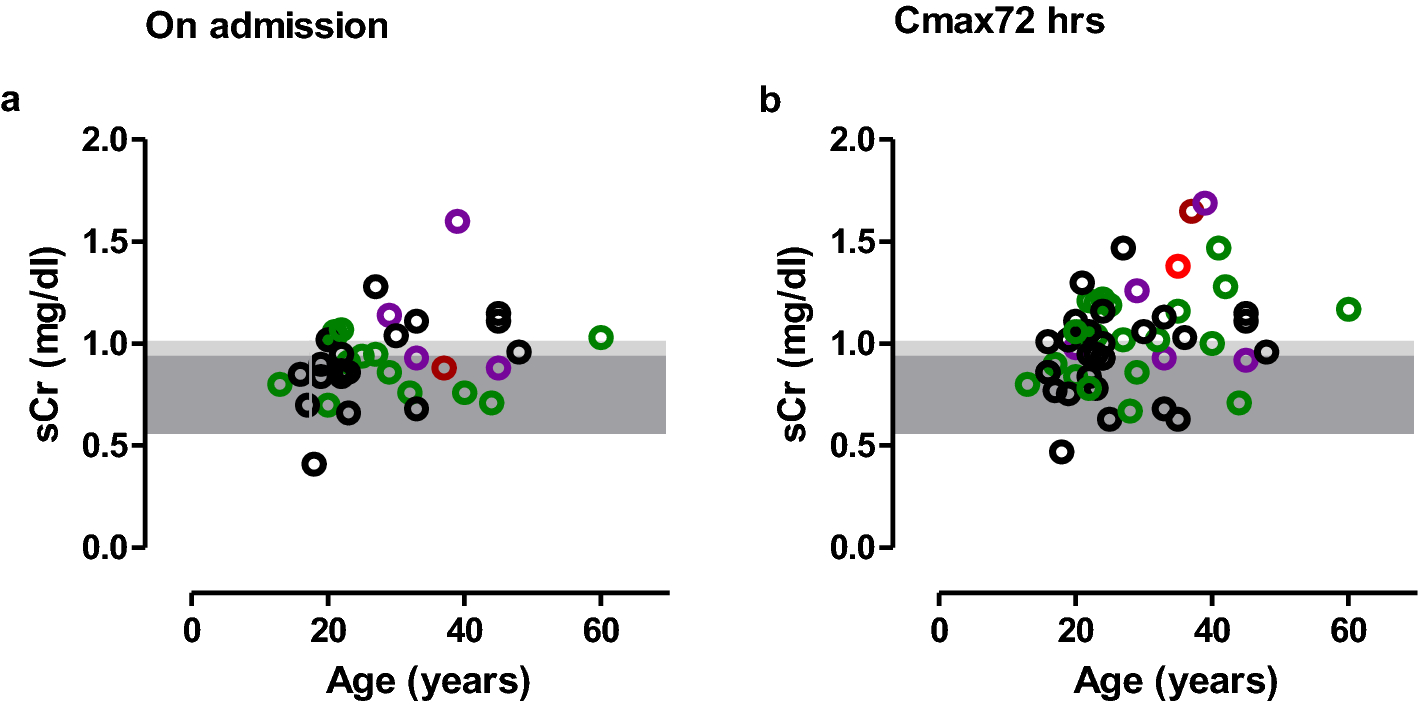

Correlation graph between age and sCr. (a) On admission sCr (b) maximum sCr concentration noted with 72 h post-ingestion (Cmax72). Black circle—No AKI (alive), red circle—death, green circle—AKIN1 (alive), purple circle—AKIN2 (alive) and brown circle AKIN3 (alive). The grey color shaded area illustrates 5th–75th percentile and light grey color shaded area indicates 75th–95th percentile of the normal range based on measurements in healthy individuals.
