From: Identification of potential light deficiency response regulators in endangered species Magnolia sinostellata

Figure 4

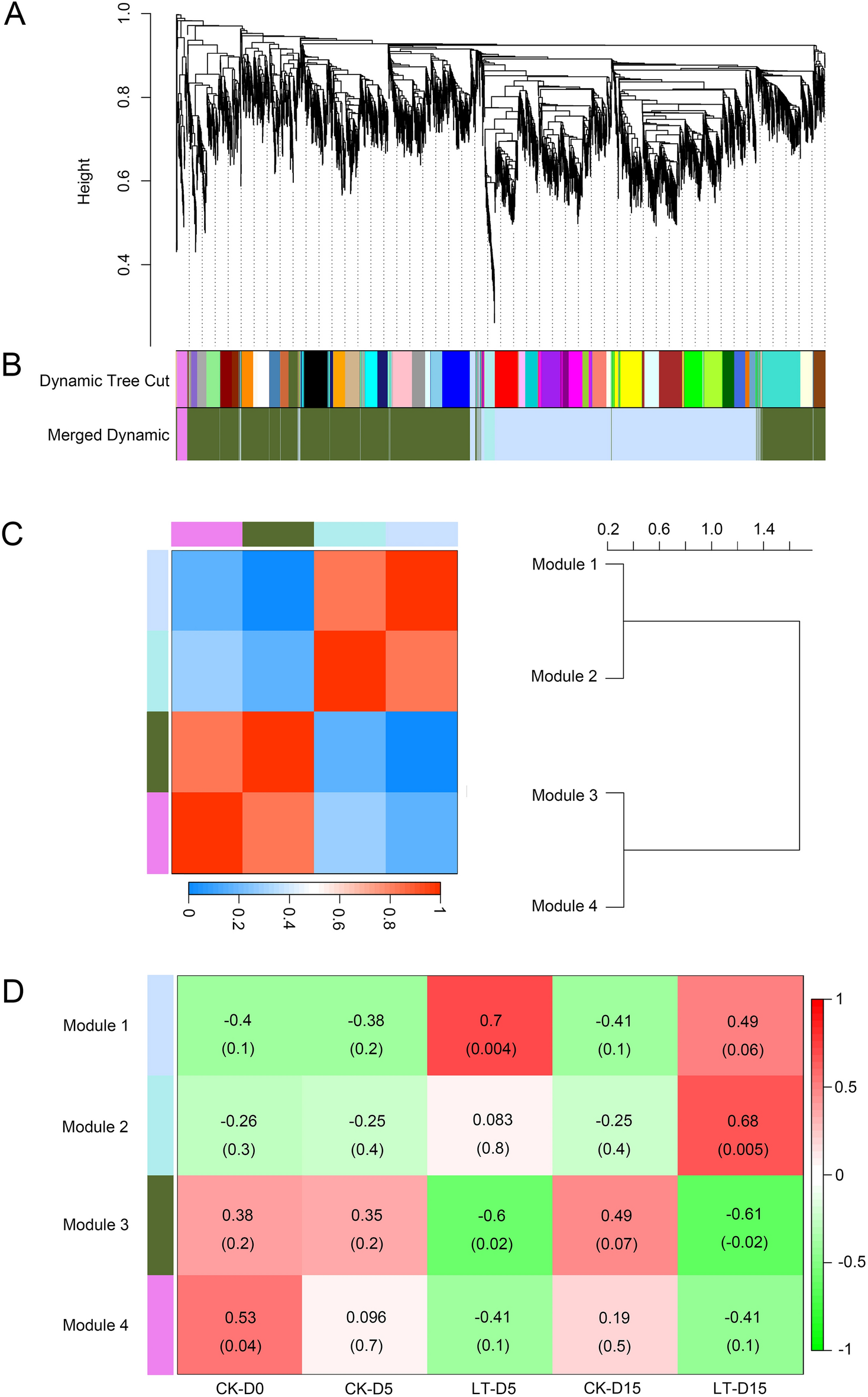

WGCNA module identification of 4734 core DEGs in M. sinostellata (R software, version 4.0.3, www.gnu.org/software/r/). (A) hierarchical clustering tree of 4734 core DEGs in M. sinostellata. (B) Dynamic tree cut and merged modules. (C) Dendrogram heatmap of four merged modules. (D) Module-trait relationship heat map. the correlation of the identified modules in control and shade treated groups. Red and green color illustrated positive and negative correlation with gene expression, respectively.
