Figure 3
From: Echoed induction of nucleotide variants and chromosomal structural variants in cancer cells

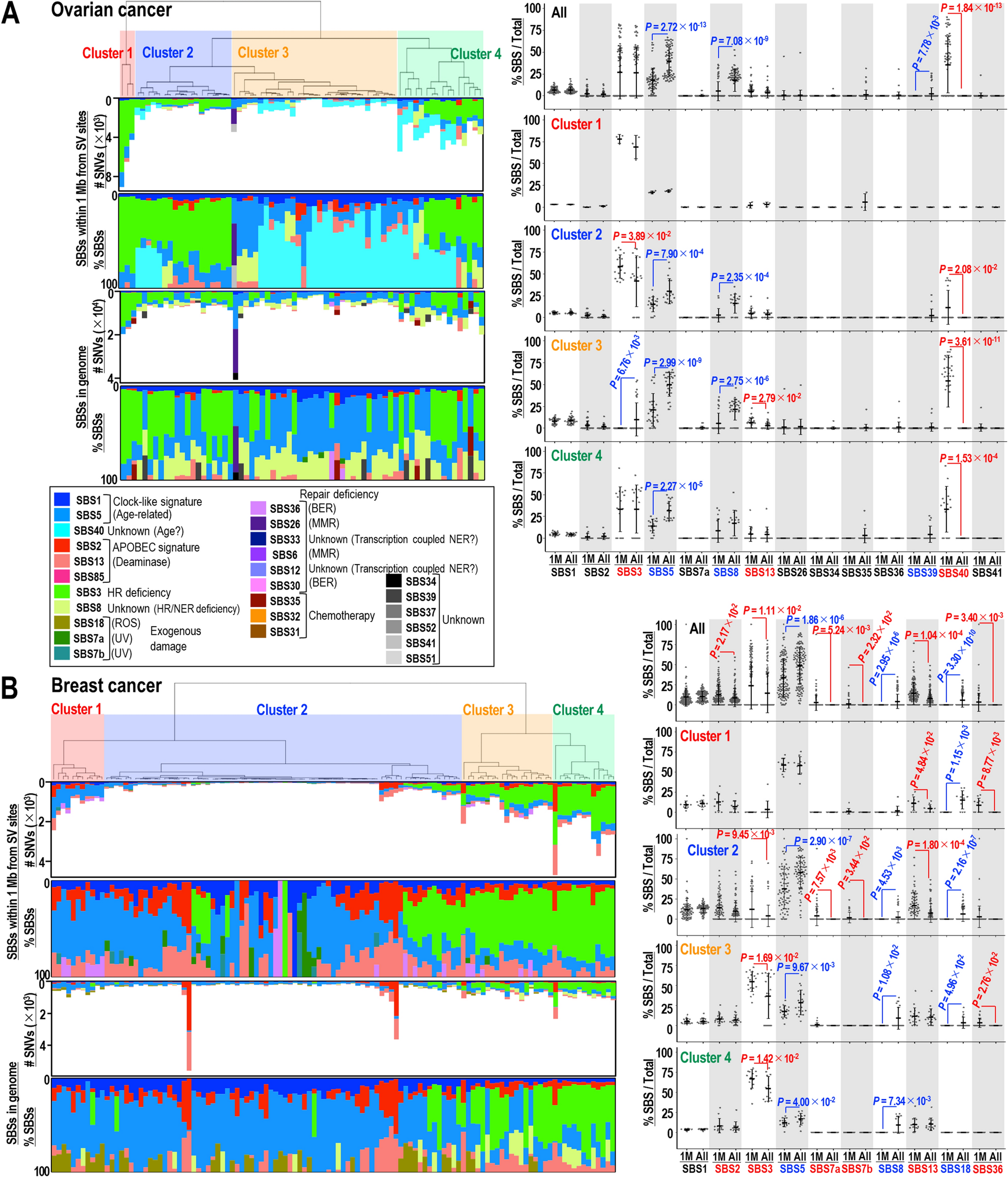

Biased inductions of APOBEC- and repair deficiency-associated signatures near SV sites in ovarian and breast cancers. (A,B) Signatures induced in ovarian (A) and breast (B) cancers within 1 Mb from SV sites (left upper panels) and in whole genomes (left bottom panels). The numbers of signatures were subsequently classified into four clusters. Percentages of SBS types induced in each tumor were plotted for all tumors and within each cluster (right panels). Statistical analyses by two-tailed Welch’s t-tests.
