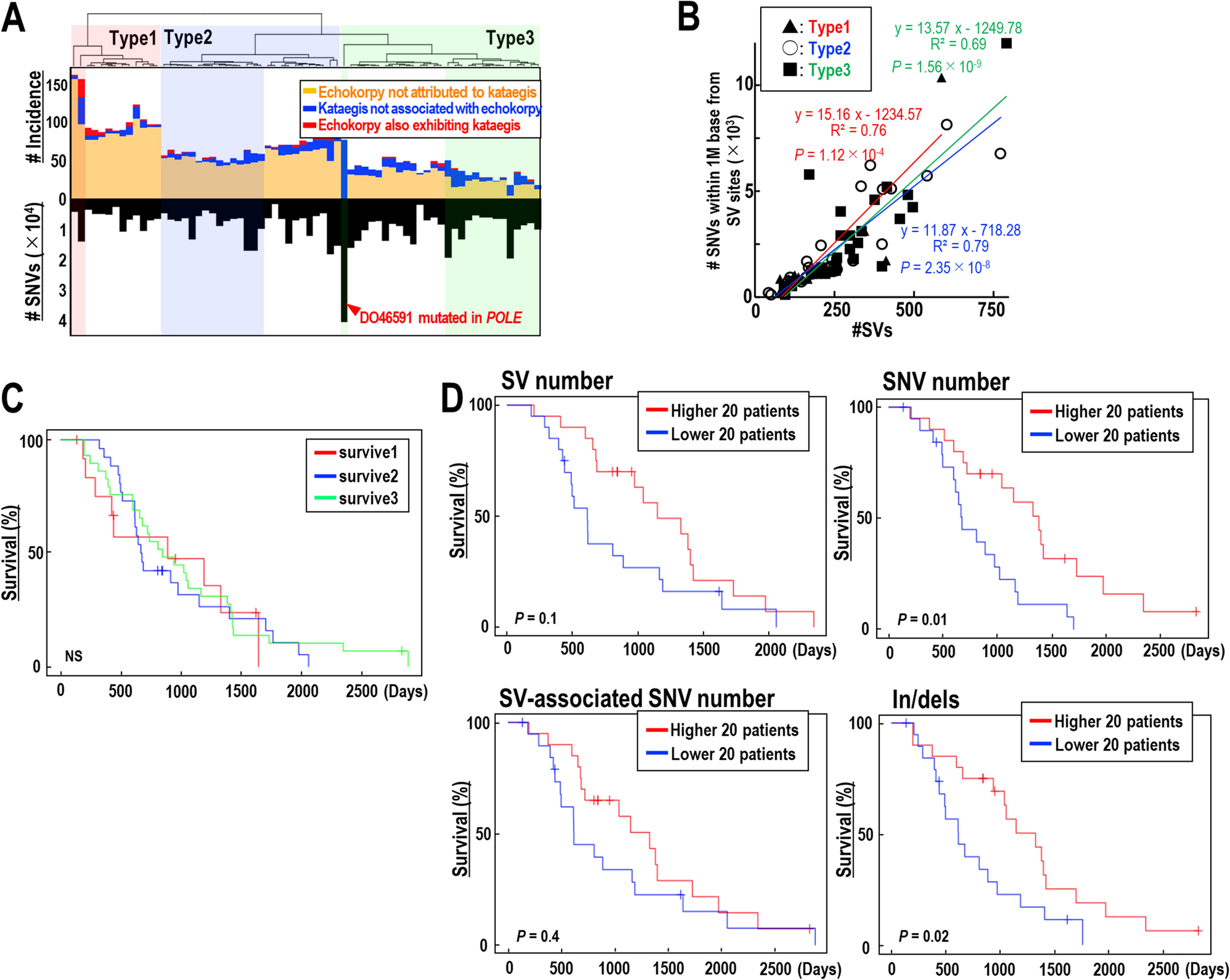

Figure 5
From: Echoed induction of nucleotide variants and chromosomal structural variants in cancer cells
SV/SNV status of ovarian cancer and association with prognosis. (A) Classification of ovarian cancers according to echoed SV/SNV induction and kataegis statuses. (B) Relationship between SNV counts within 1 Mb of SV sites and the numbers of SVs induced in each type of individual cancers. Statistical analyses by two-tailed t-tests. (C,D) Kaplan–Meier analysis of survival in patients with ovarian cancer stratified by classification (C) and by the status of SVs, SNVs, SV-associated SNVs, and indels (D). Statistical analyses by log-rank tests.
