Figure 3

From: Toxicology assessment of manganese oxide nanomaterials with enhanced electrochemical properties using human in vitro models representing different exposure routes

Figure 3

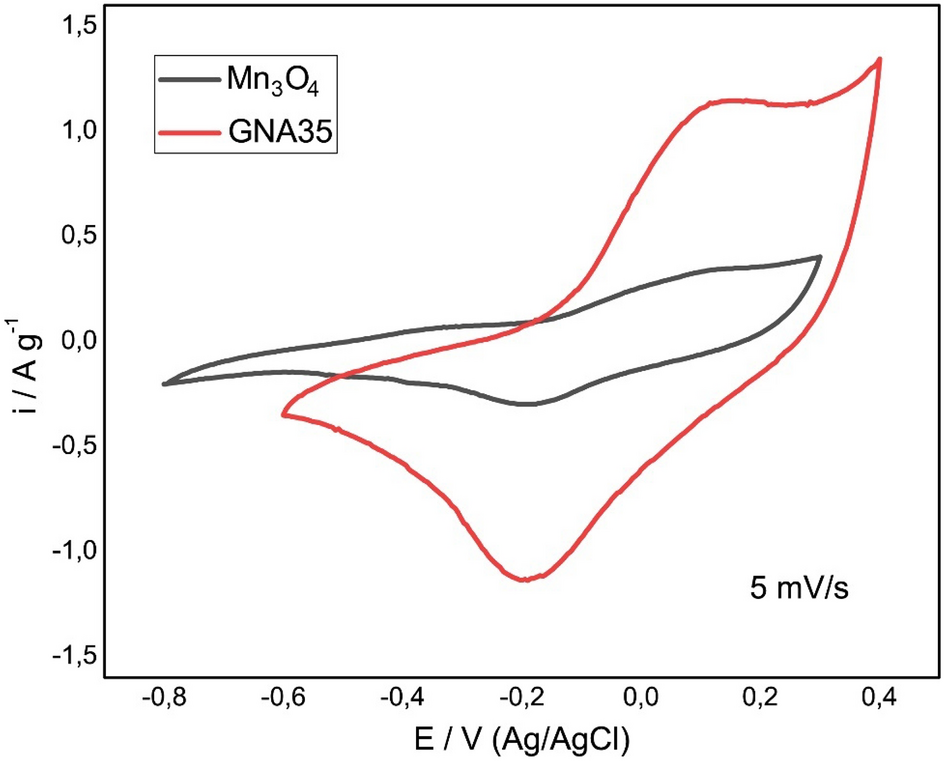

Electrochemical characterization of Mn3O4 and GNA35 electrodes: Cyclic voltammetry curves in 1 M KOH aqueous electrolyteat scan rate of 5 mV s−1 in a range of voltage between − 0.8 and 0.4 V (Ag/AgCl). Specific capacitance of 16 and 150 F g−1 were calculated at 1 A g−1 for Mn3O4 and GNA35, respectively.
