Figure 3

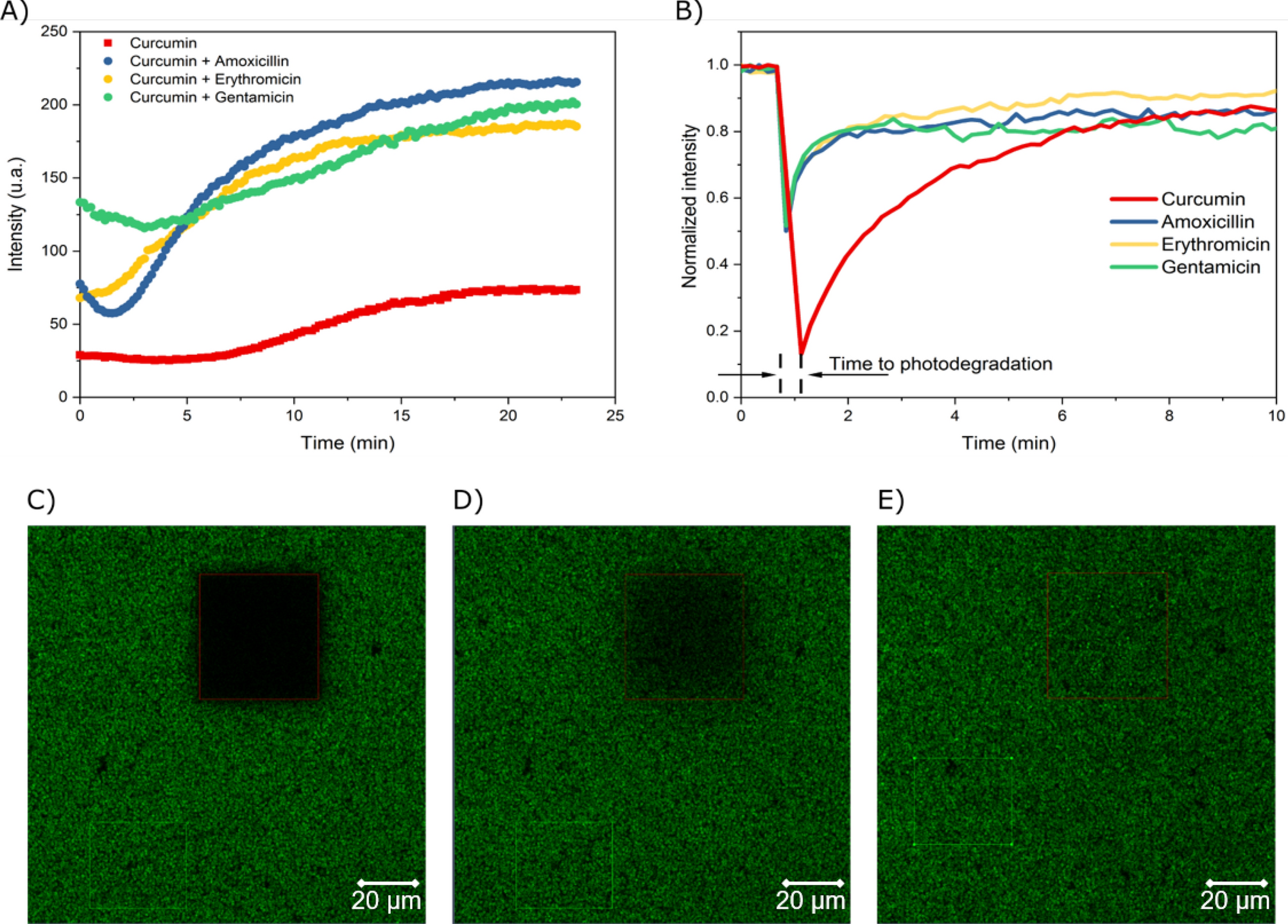

Confocal microscopy data of 10 μM curcumin fluorescence in S. aureus and in the presence of amoxicillin, erythromycin, and gentamicin. (A) Kinetics of curcumin incorporation. (B) Fluorescence Recovery After Photodegradation (FRAP) of curcumin. Image of photodegradation of internalized curcumin with 63 × magnification and channel mode with (C) 1min7s D) 2min7s and (E) 10min1s timelapse.
