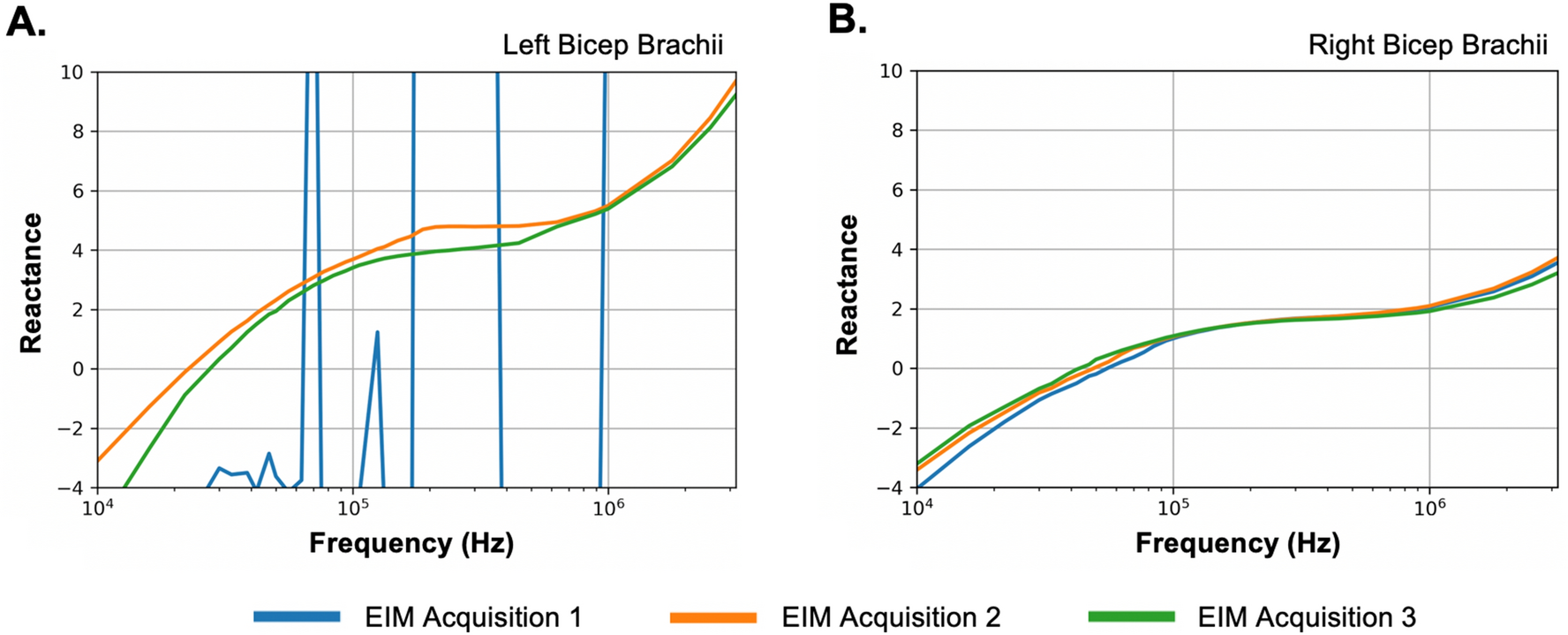

Real-time QA/QC of EIM data. (A) EIM traces from the left bicep brachii from FOP 003. In one EIM acquisition (blue trace) shows large spikes caused by accidental patient movement or movement of the EIM device by the care provider, warranting a rescan of the left bicep brachii. Subsequent scans of the left bicep brachii (green and orange traces) showed no artifact and were incorporated in data analysis. (B) Raw EIM traces from FOP 003 from the right bicep brachii. The EIM traces were collected during same study session and showed no signal artifact.
