From: Development and validation of a new multiplex for upgrading Y-STRs population databases from 12 to 23 markers and its forensic casework application

Figure 1

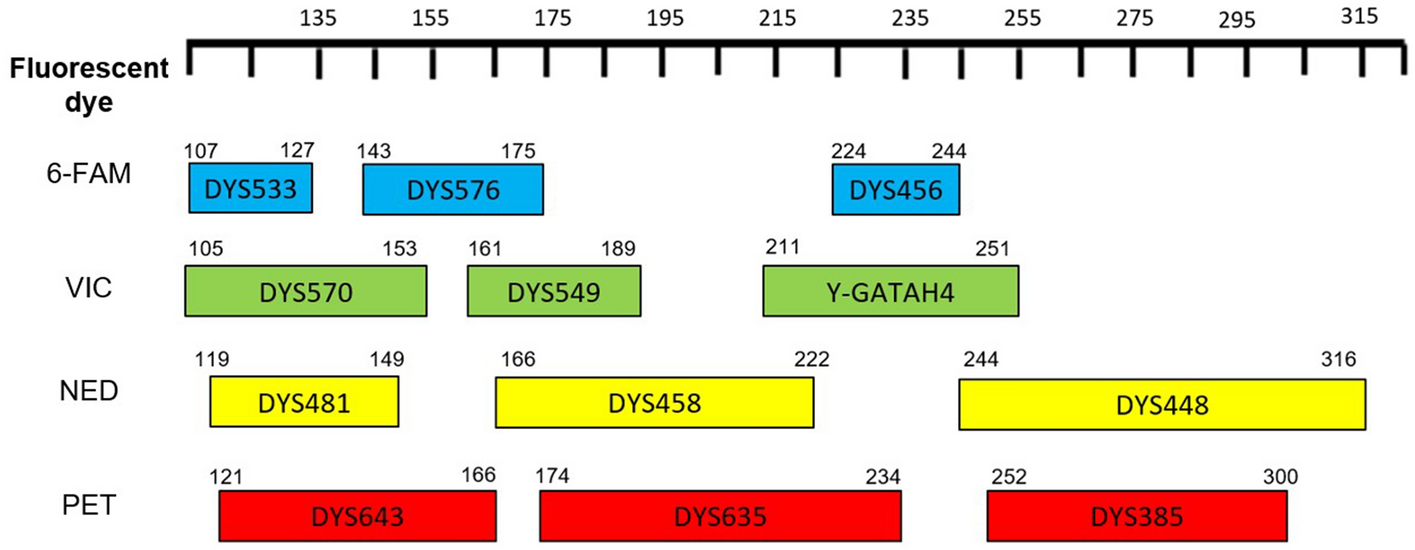

Design of the 11 plus DYS385a/b Y-STR multiplex panel developed in the present study. The boxes represent the expected fragment sizes for each locus and the color of the fluorescent dye with which forward primers were labeled. The scale at the top represents the size (bp) and the fluorescent dye for the corresponding loci is shown on the left.
