From: Metabolomics and transcriptomics reveal the effect of hetero-chitooligosaccharides in promoting growth of Brassica napus

Figure 1

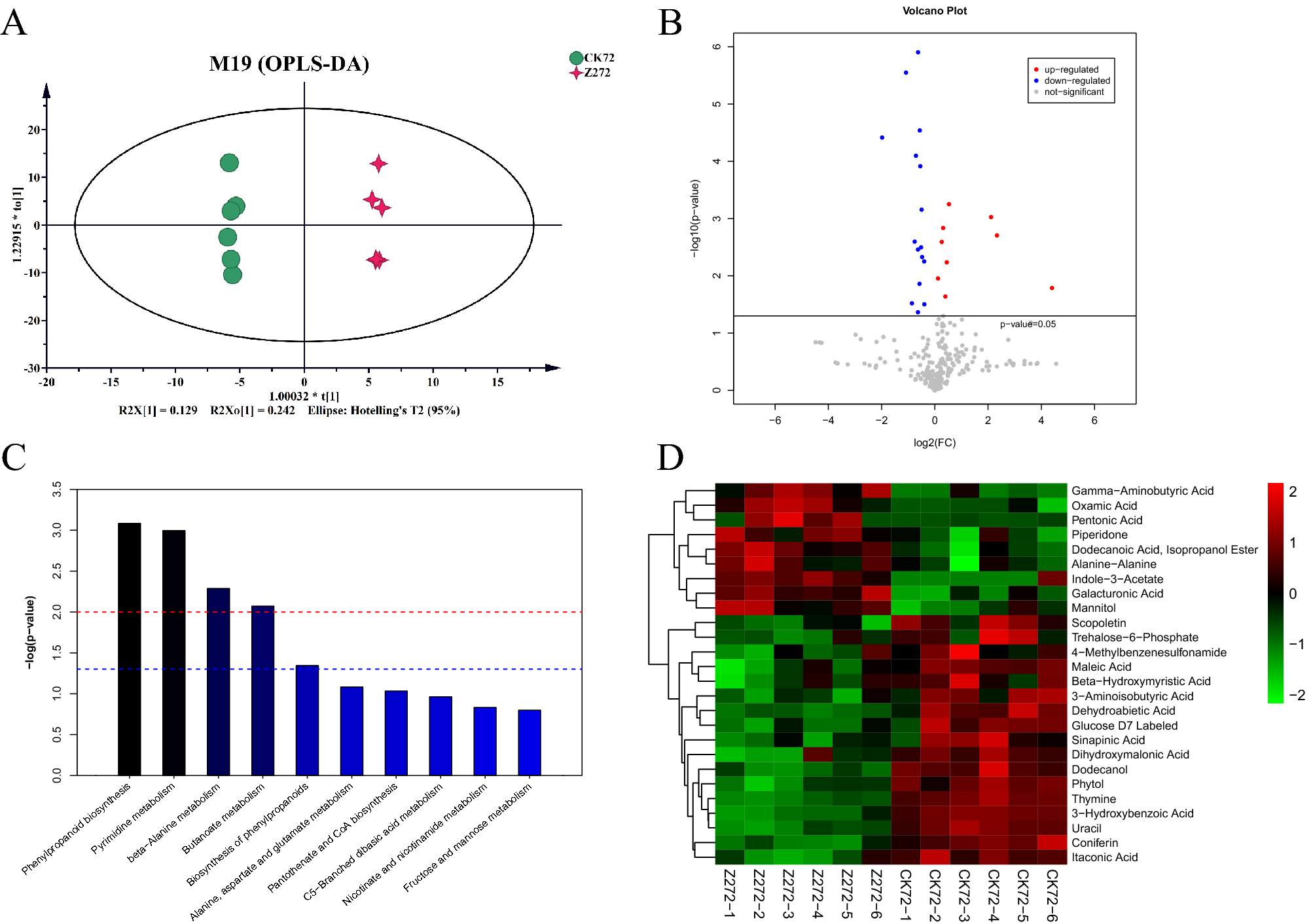

The changes of metabolites in B. napus between control (CK72) and HT-COS (Z272) treatments. (A) The orthogonal partial least squares discriminant analysis in metabolite contents. (B) The volcano plot of significantly differentiated metabolite contents. (C) The gene functional enrichment of significantly up-regulated metabolites under the DA treatment. (D) The heat map of metabolites changes.
