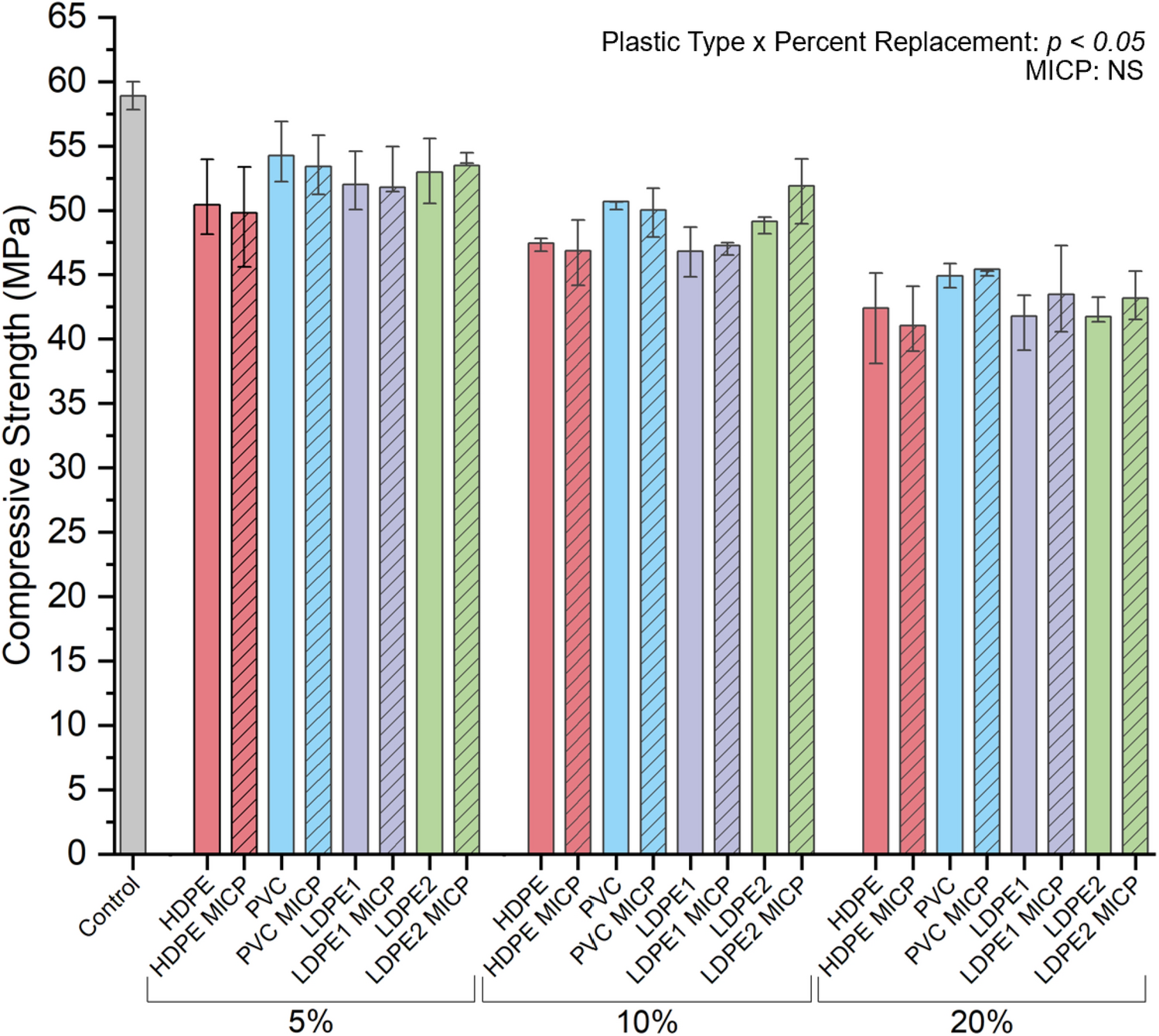

Figure 5

Compressive strengths at replacement percentages 5–20% with waste plastic and no treatment (solid) and MICP-treated waste plastic (striped). Each color indicates a different type of waste plastic: HDPE (red), PVC (blue), LDPE1 (purple), and LDPE2 (green). The bar heights represent the mean, and the error bars indicate one standard deviation.
