Figure 4
From: Residual ST-segment elevation to predict long-term clinical and CMR-derived outcomes in STEMI

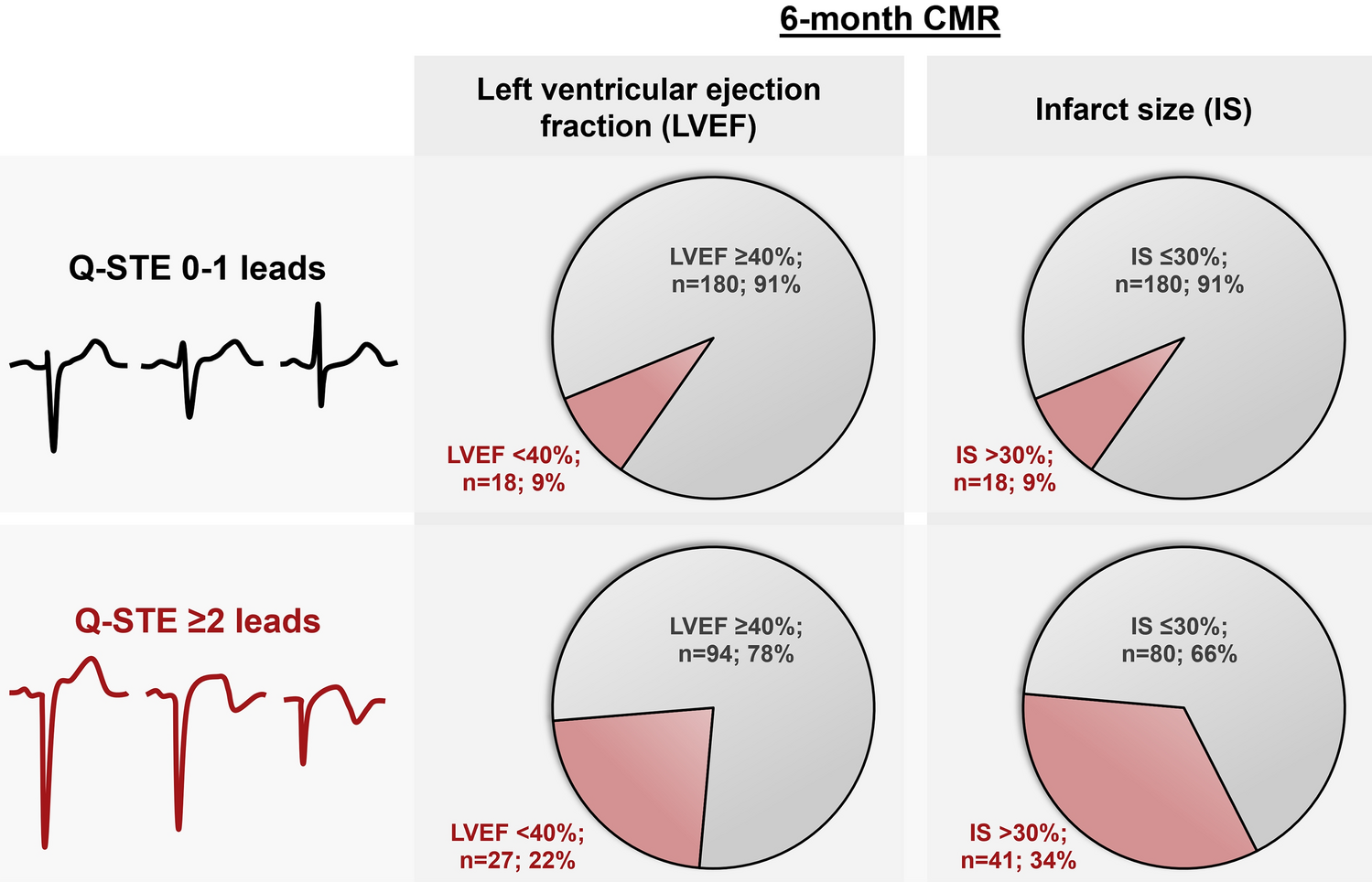

Pre-discharge Q-STE categories and structural changes at 6-month CMR. The number and percentage of patients with reduced (< 40%) LVEF and large (> 30% of LV mass) IS at 6-month CMR is shown in each Q-STE category (0–1 leads and ≥ 2 leads). Abbreviations: CMR = cardiac magnetic resonance. IS = infarct size. LV = left ventricular. LVEF = left ventricular ejection fraction. Q-STE = Q wave and residual STE > 1 mm.
