Figure 5
From: Residual ST-segment elevation to predict long-term clinical and CMR-derived outcomes in STEMI

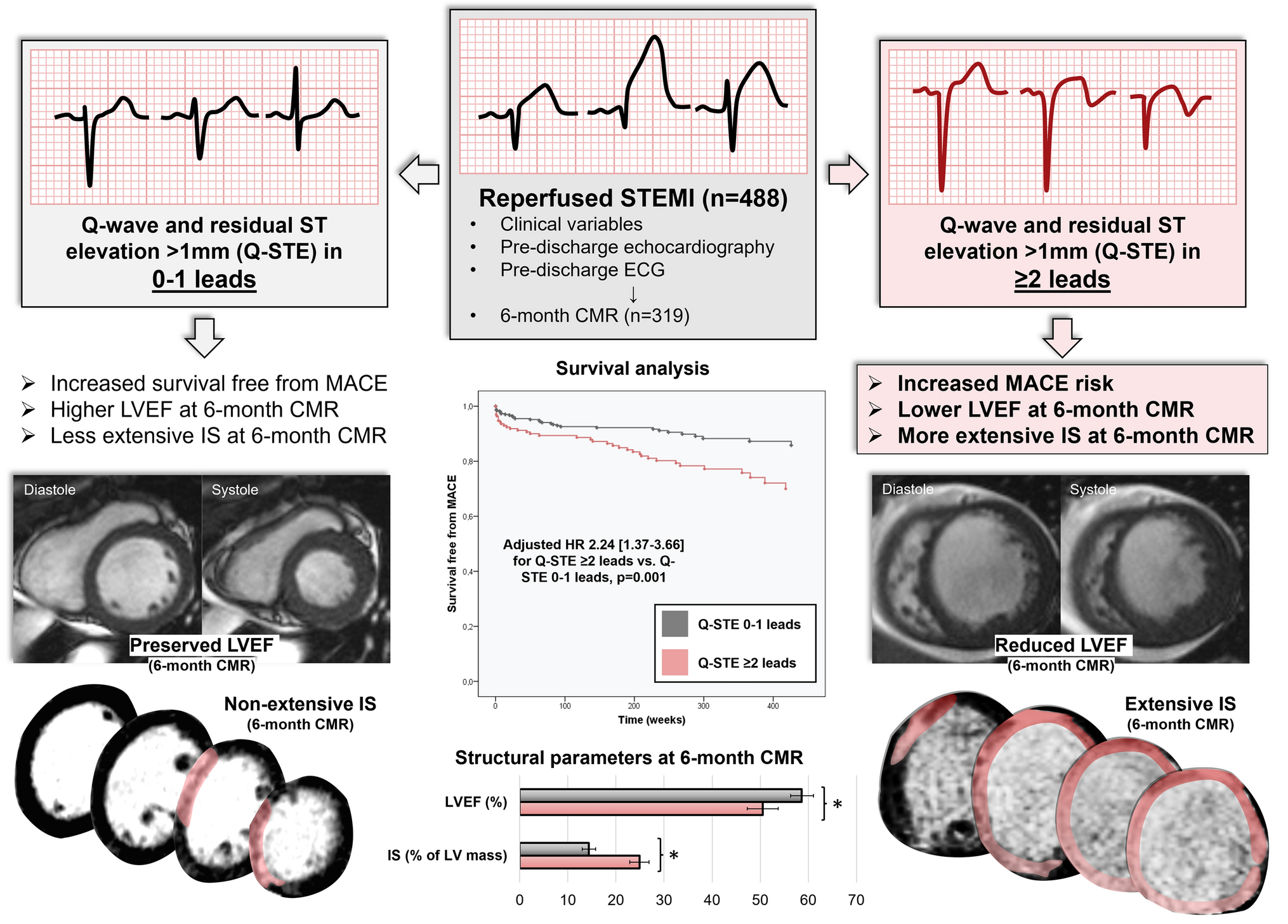

Visual summary depicting the most relevant findings of the study. Abbreviations: CMR = cardiac magnetic resonance. HR = hazard ratio. IS = infarct size. LV = left ventricular. LVEF = left ventricular ejection fraction. STEMI = ST-segment elevation myocardial infarction. Q-STE = Q wave and residual STE > 1 mm.
