From: Multi-fractal detrended cross-correlation heatmaps for time series analysis

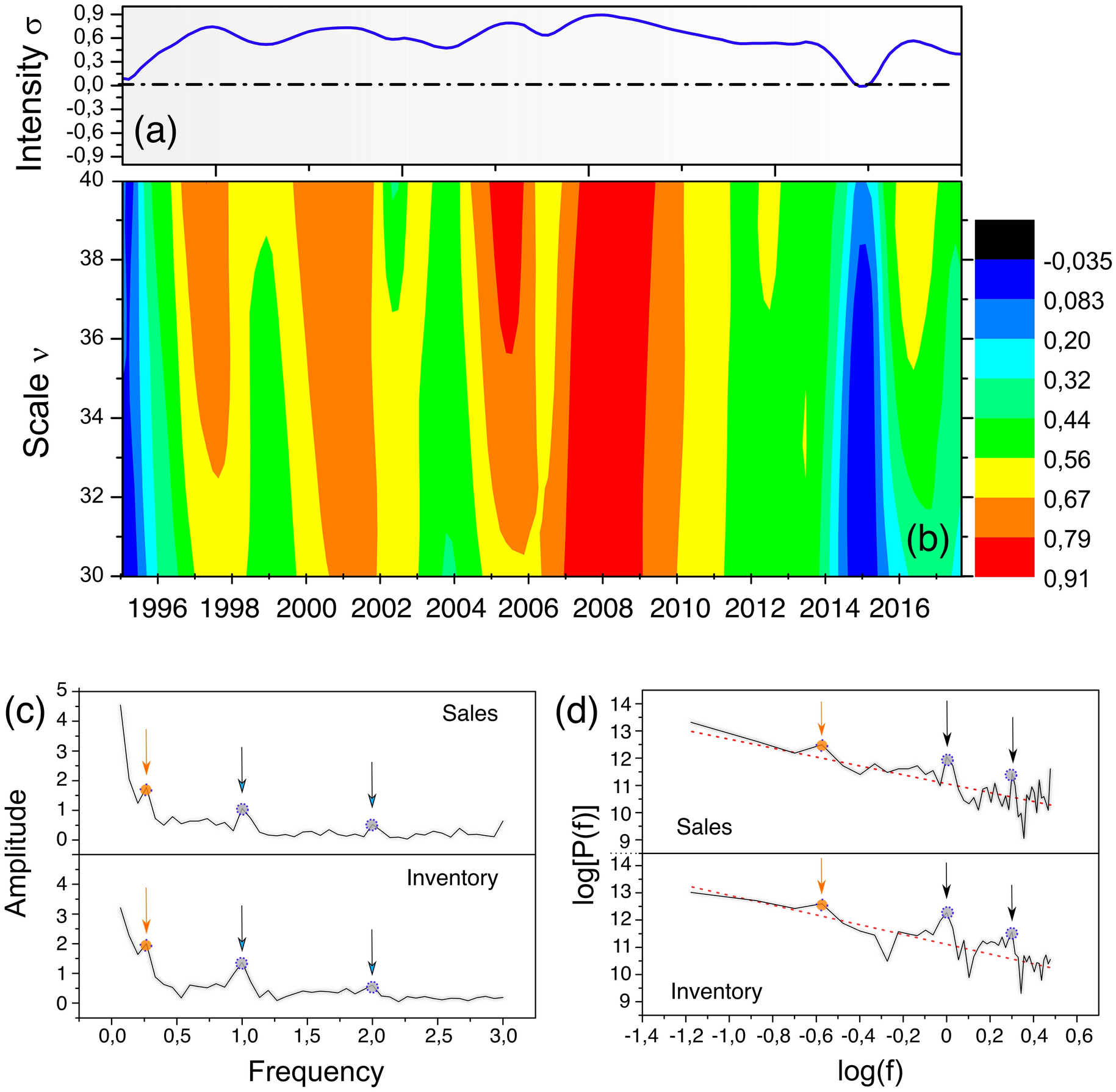

MF-DCCHM diagram of cross-correlations. (a) Average for each period. (b) MF-DCCHM heatmap of cross-correlations considering multiple sliding boxes v distributed over the years. (c) The amplitude spectra and (d) power versus annual frequency for the inventory and sales.
