Figure 7
From: Three-dimensional muon imaging of cavities inside the Temperino mine (Italy)

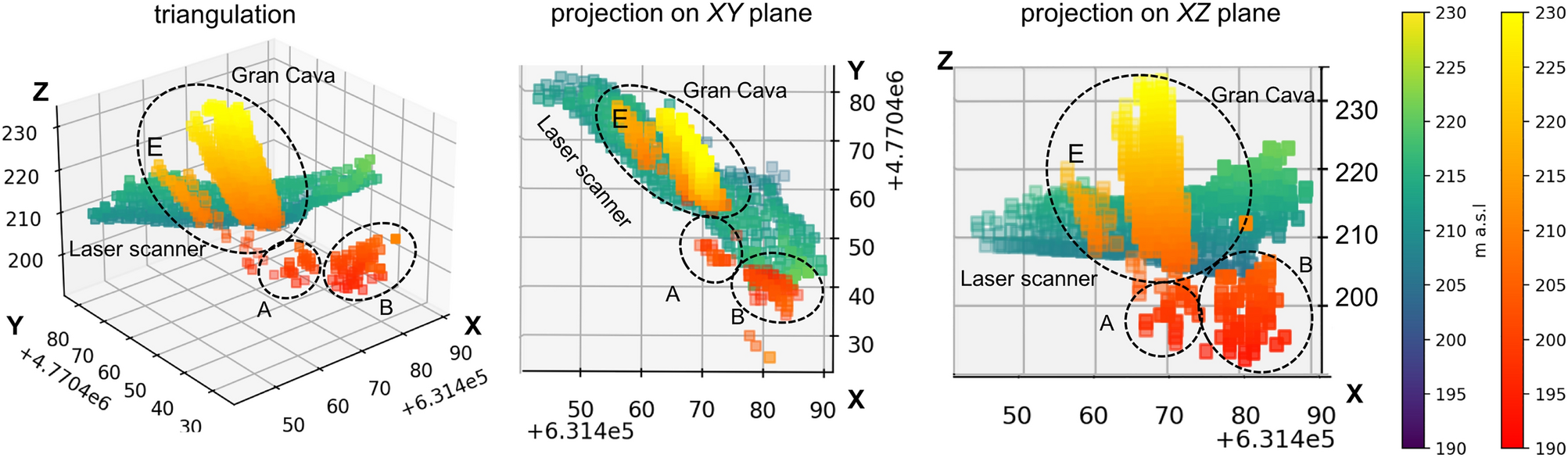

Results of the triangulation technique applied to the three density maps: 3D visualization (left), and the projections on plane XY (centre) and ZX (right). The colors indicate the altimetry (the orange scale for triangulation results and the blue-green scale for the Gran Cava laser scan) and the x and y coordinates are reported in the reference system EPSG:32632. The detector is located at about 185 m a.s.l.. The biggest area is identified with the Gran Cava at a relative altitude of about 20 m. The cavities A and B are not present in the cartography’s map of the mine.
