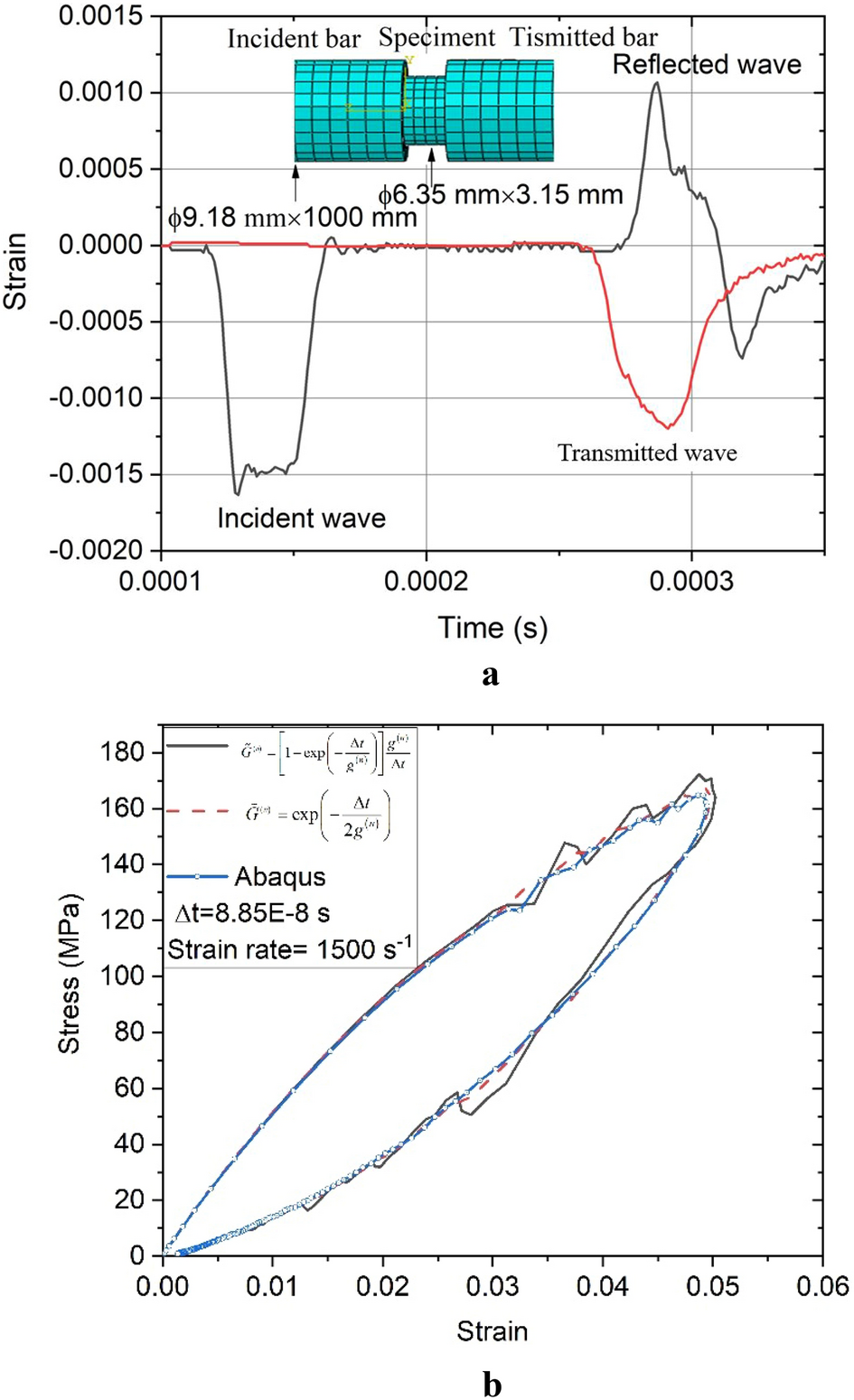

Figure 5
(a) Incident, reflected, and transmitted wave from the dynamic compressive simulation of the PBX 9501 using the VE model. (b) Comparison of the numerical results calculated by the proposed model and the linear VE material model in ABAQUS.
