From: Assessment of cardiotoxicity and plasma ropivacaine concentrations after serratus intercostal fascial plane block in an experimental model

Figure 2

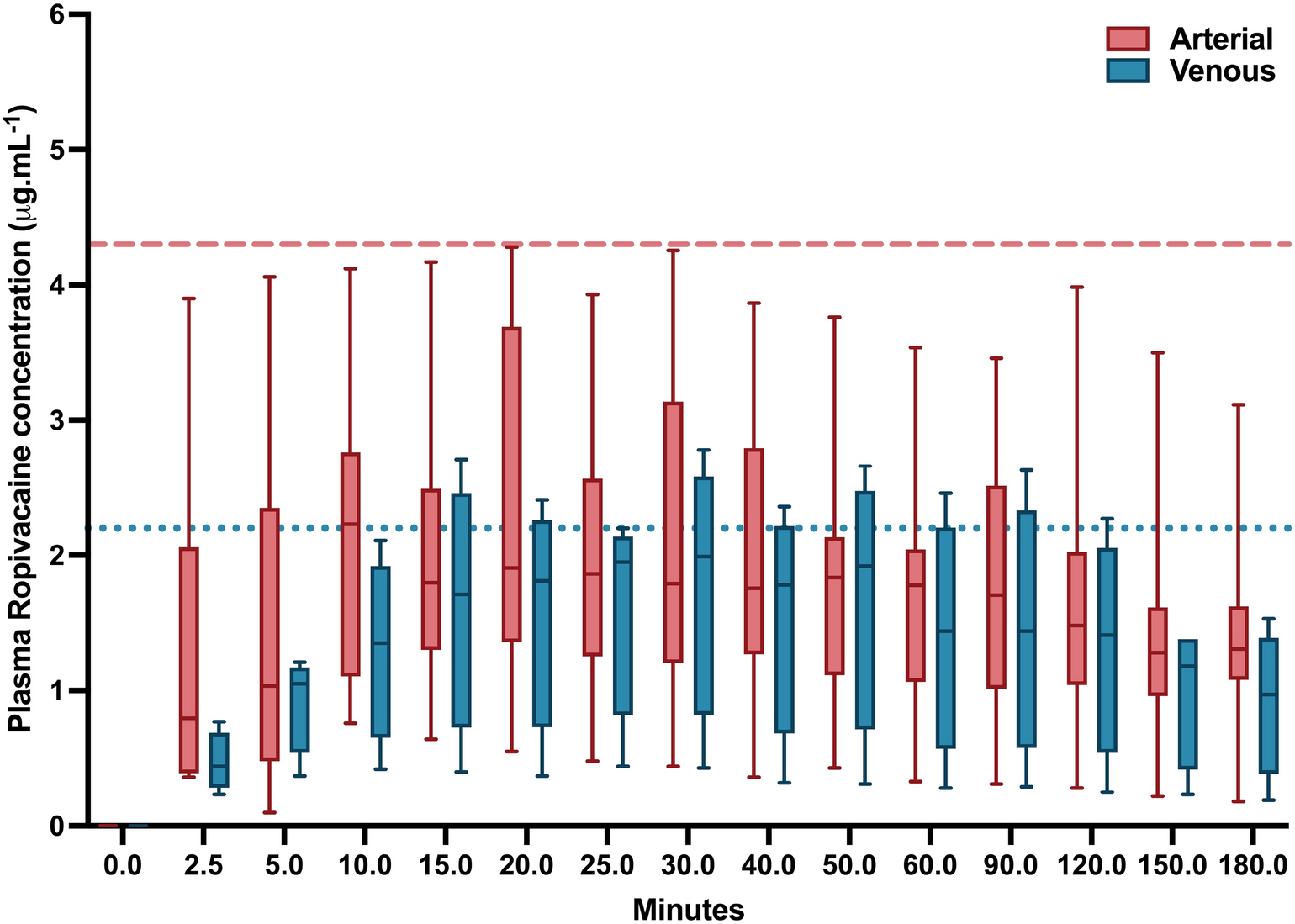

Total ropivacaine plasma arterial and venous concentrations. Data are presented as box and whisker plots with the line within the box indicating the median, the box representing the 25% and 75% percentiles, the whiskers indicating the 5% and 95% percentiles, and the single spots representing the extremes. Red dotted line = 4.3 μg/ml, blue dotted line = 2.2 μg/ml; In Knudsen study the mean tolerated arterial and venous concentration of ropivacaine was 4.3 μg/ml and 2.2 μg/ml respectively.
