From: Rapid yield optimization of miniaturized microwave passives by response features and variable-fidelity EM simulations

Figure 5

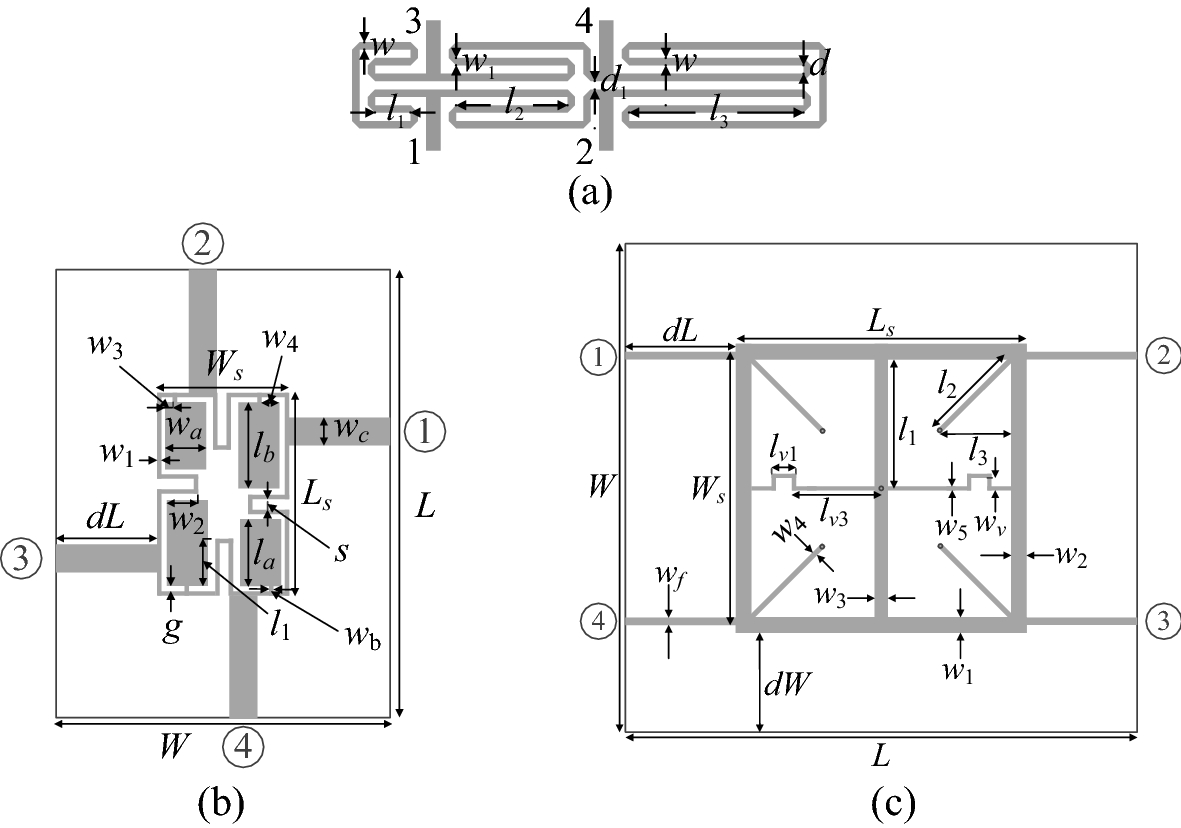

Verification circuits used for validation of the yield optimization framework of “Yield optimization of microwave passives using multi-fidelity response features” section: (a) miniaturized rat-race coupler with folded transmission lines (Coupler I)43, (b) compact branch-line coupler (Coupler II)44, (c) dual-band branch-line coupler (Coupler III)45.
