From: Rapid yield optimization of miniaturized microwave passives by response features and variable-fidelity EM simulations

Figure 8

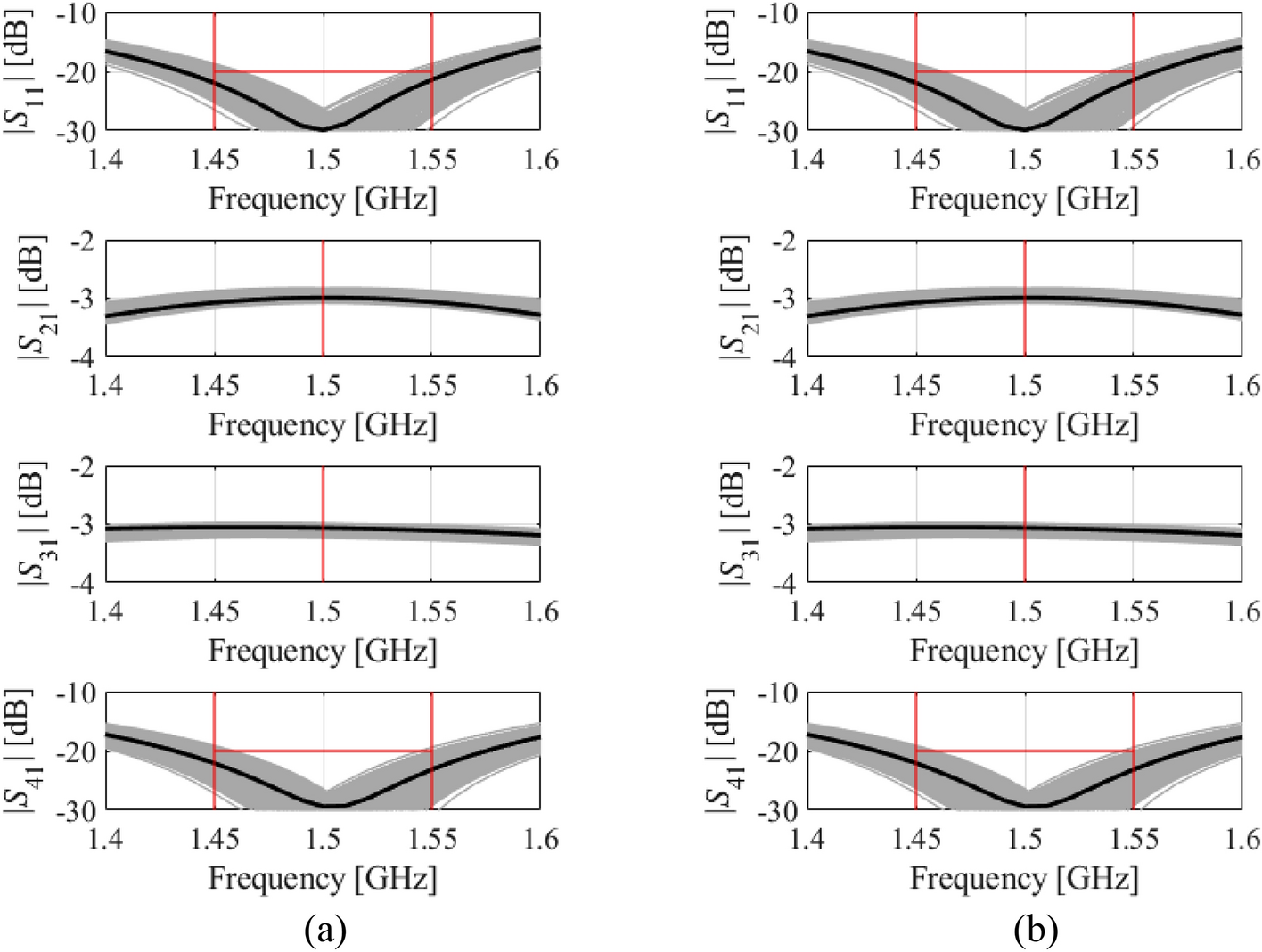

Visualization of EM-based Monte Carlo analysis for Circuit II (a) at the nominal design, and (b) at the optimal design rendered with the use of the procedure introduced in this work. MC is executed using 500 random data points. Gray curves represent EM simulations, whereas the circuit characteristics at the nominal (a) and optimal design (b) are shown black.
