Figure 4

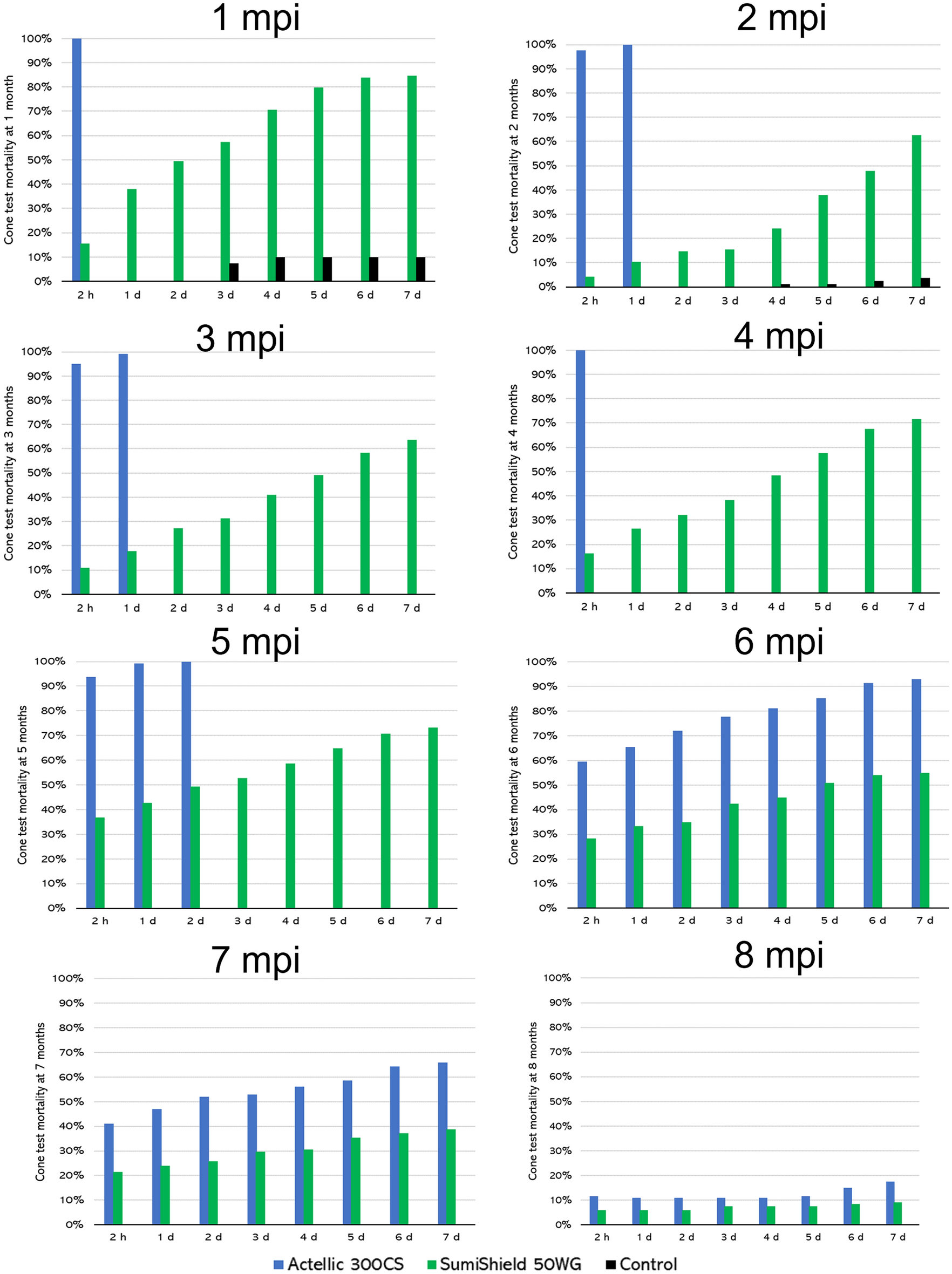

World Health Organization cone bioassays. Conducted up to 8 months post-intervention (mpi) using the Rockefeller Ae. aegypti strain. The graphs show acute (2 h after the 30-min exposure in the cones) and delayed (1 day to 7 days after the 30-min exposure in the cones) mortality values for each mpi.
