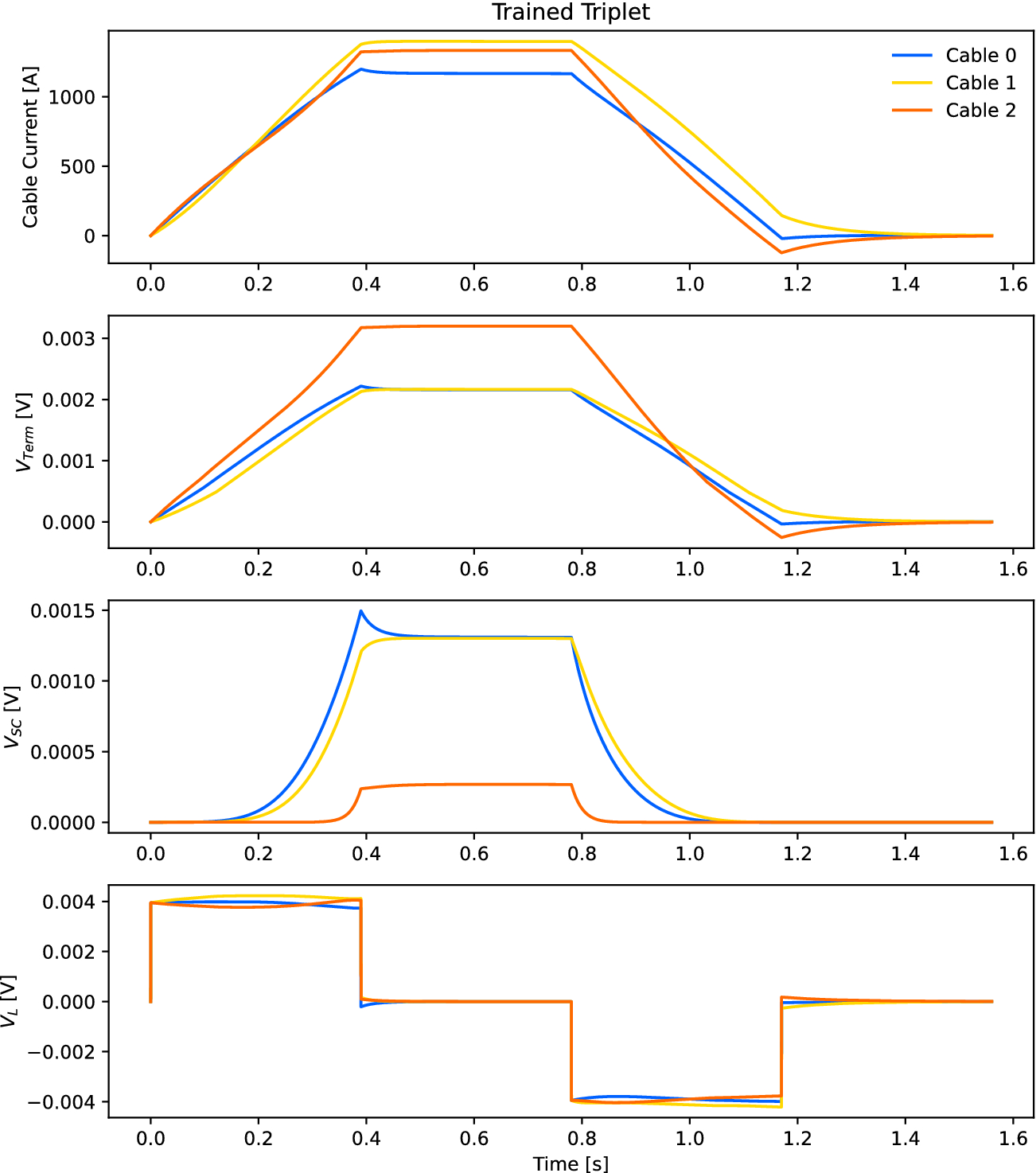

Figure 7
Simulated performance of the triplet cable during a fast trapezoidal ramp to 3900 A at 10,000 A/s using the extracted parameters in Tables 1, 2, 3. The top plot shows the current, the second plot shows the termination voltage, the third plot shows the superconductor voltage, and the bottom plot shows the inductive voltage of each cable (see Fig. 2).
