Figure 8
From: Interfacial properties of SiCf/SiC minicomposites with a scheelite coating

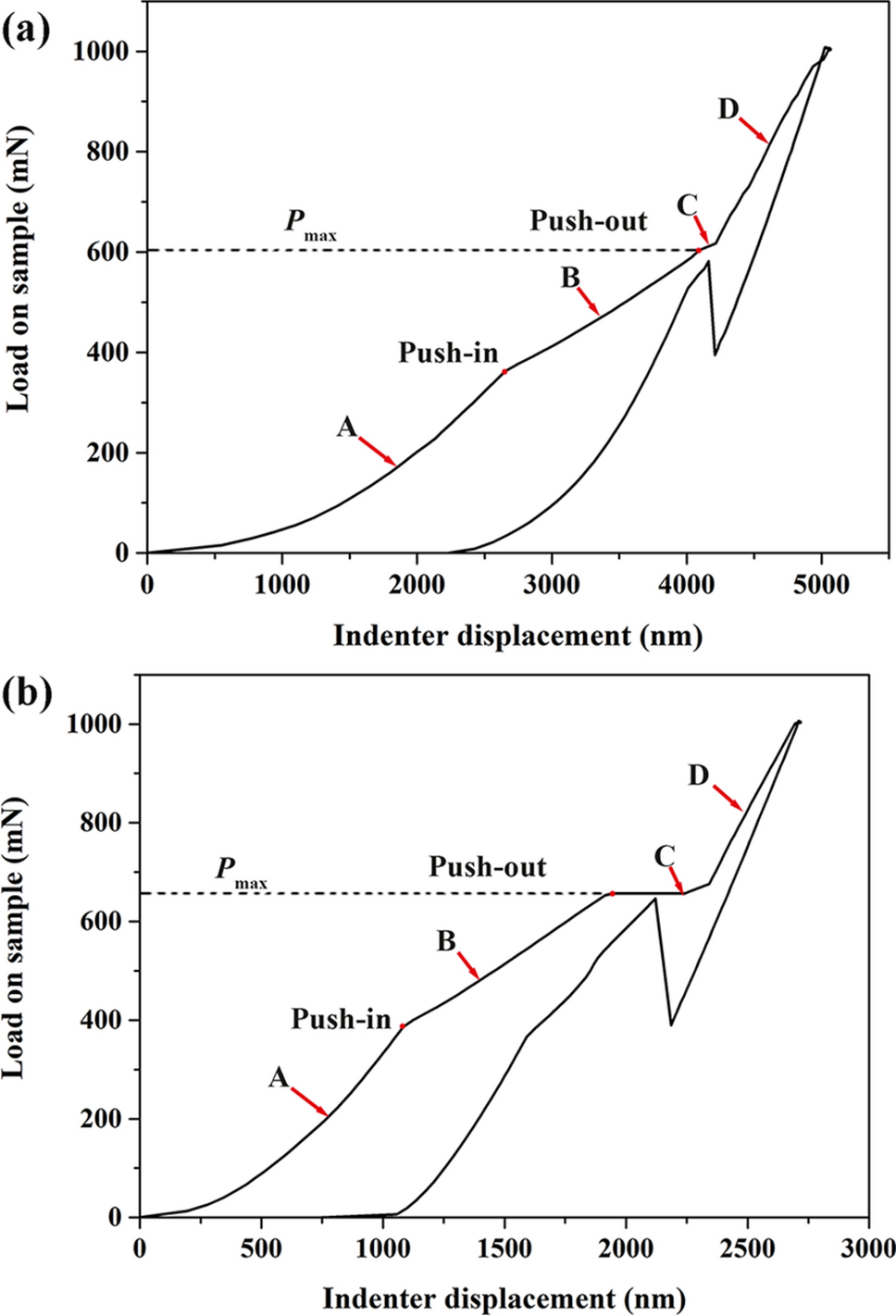

Representative indentation curve of single-fiber push-out tests on the SiCf/SiC minicomposite: (a) with CaWO4 interphase coating and (b) without interphase coating.
