From: Transcriptome analysis reveals differential transcription in tomato (Solanum lycopersicum) following inoculation with Ralstonia solanacearum

Figure 5

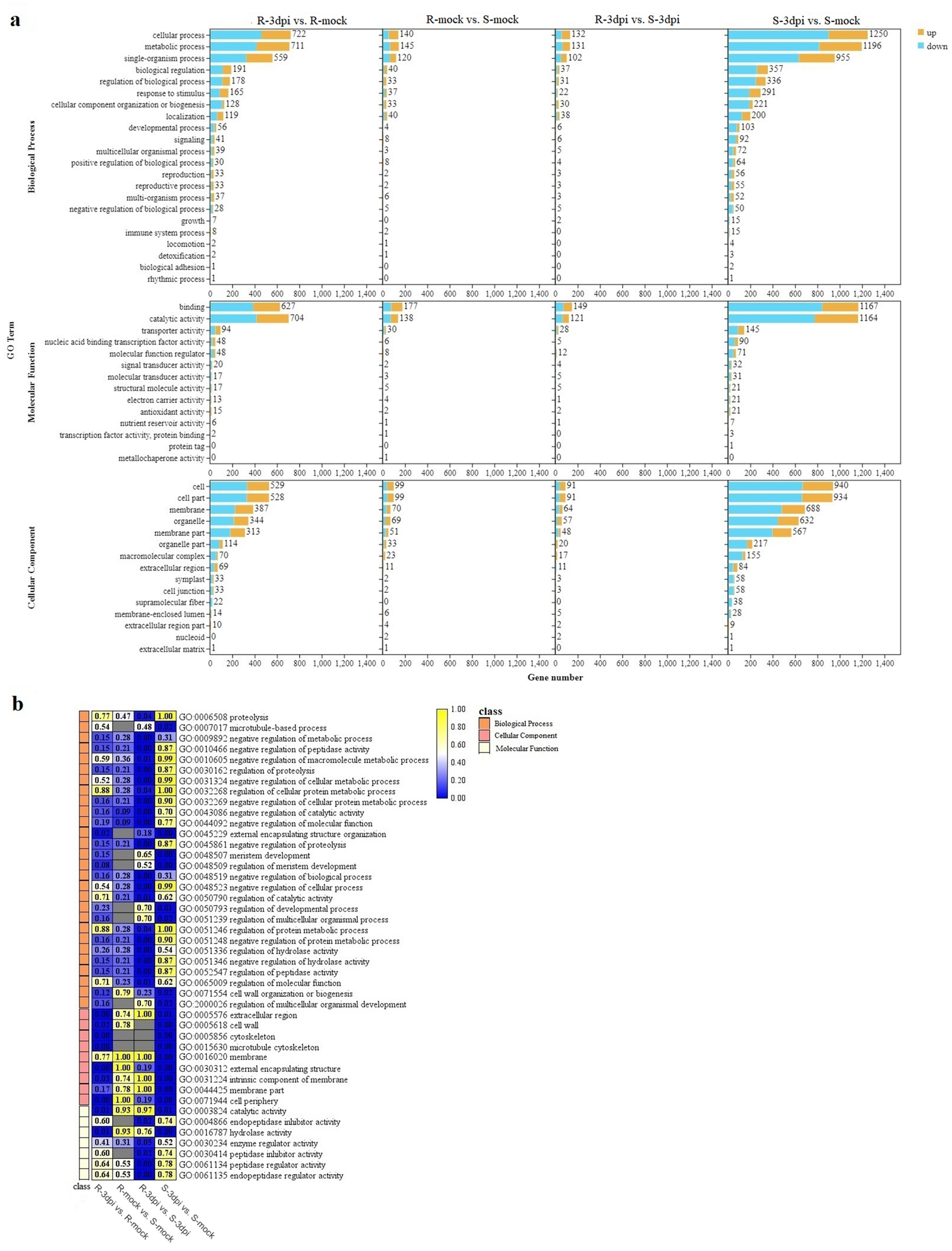

GO enrichment analyses of DEGs in four comparisons (R-3dpi vs. R-mock, R-mock vs. S-mock, R-3dpi vs. S-3dpi, and S-3dpi vs. S-mock). (a) Summary of the distribution and number of DEGs in three ontology classes, including biological process, molecular function, and cellular component. (b) Q-value heat map of the GO enrichment of the three main ontology classes. The color scale indicates the Q-value. Darker coloration indicates more significant enrichment. R-mock represents mock-inoculated Hm 2–2 plants; R-3dpi represents 3 days post-pathogen-inoculated Hm 2–2 plants; S-mock represents mock-inoculated BY 1–2 plants; S-3dpi represents 3 days post-pathogen-inoculated BY 1–2 plants.
