Figure 6 | Scientific Reports

Figure 6

From: Transcriptome analysis reveals differential transcription in tomato (Solanum lycopersicum) following inoculation with Ralstonia solanacearum

Figure 6

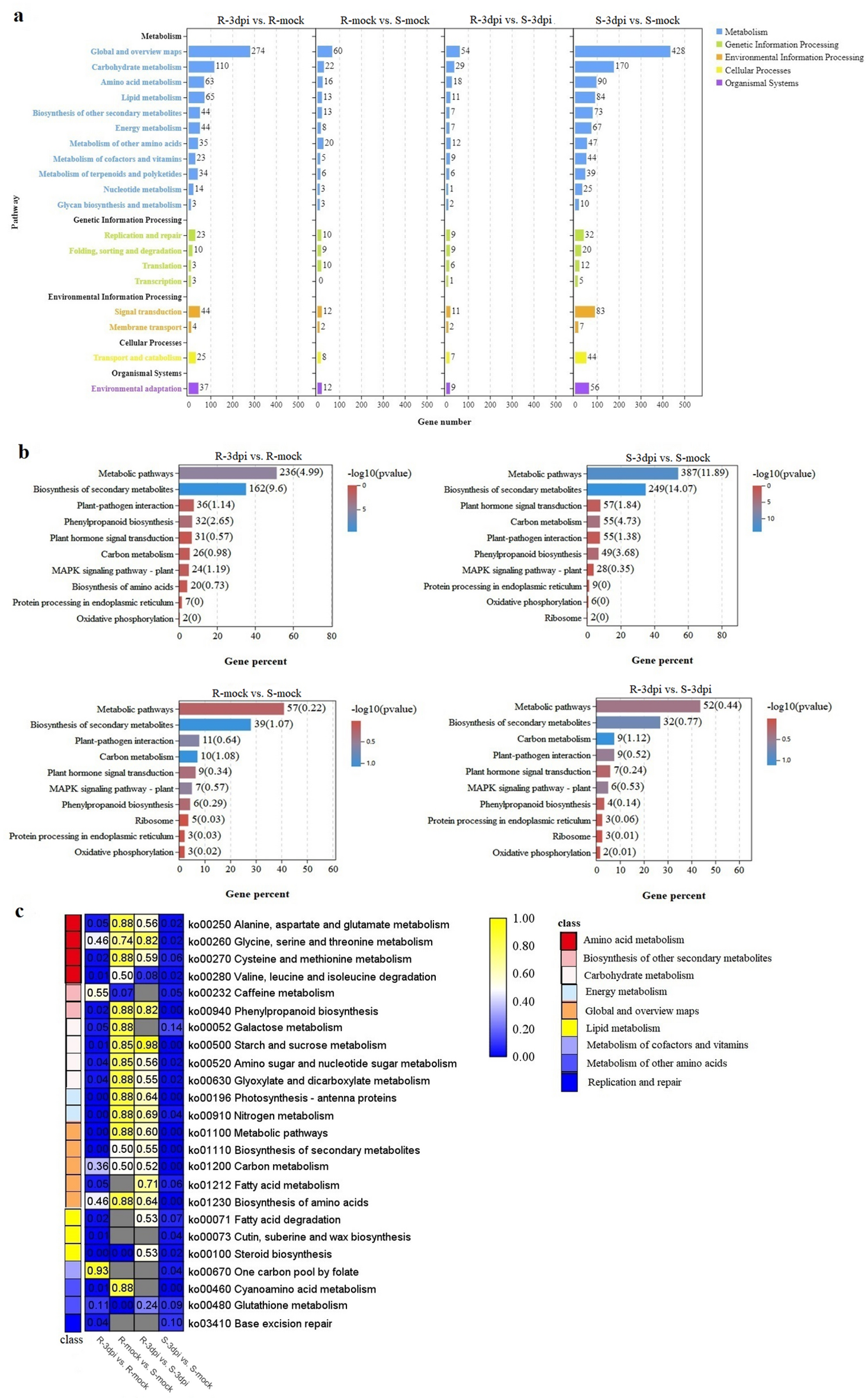

KEGG enrichment analysis of DEGs. (a) KEGG enrichment analyses in different comparisons. (b) The top ten KEGG pathways containing the largest number of DEGs in R-3dpi vs. R-mock, S-3dpi vs. S-mock, R-mock vs. S-mock, and R-3dpi vs. S-3dpi comparisons. (c) Q-value heat map of KEGG enrichment. R-mock represents mock-inoculated Hm 2–2 plants; R-3dpi represents 3 days post-pathogen-inoculated Hm 2–2 plants; S-mock represents mock-inoculated BY 1–2 plants; S-3dpi represents 3 days post-pathogen-inoculated BY 1–2 plants.
