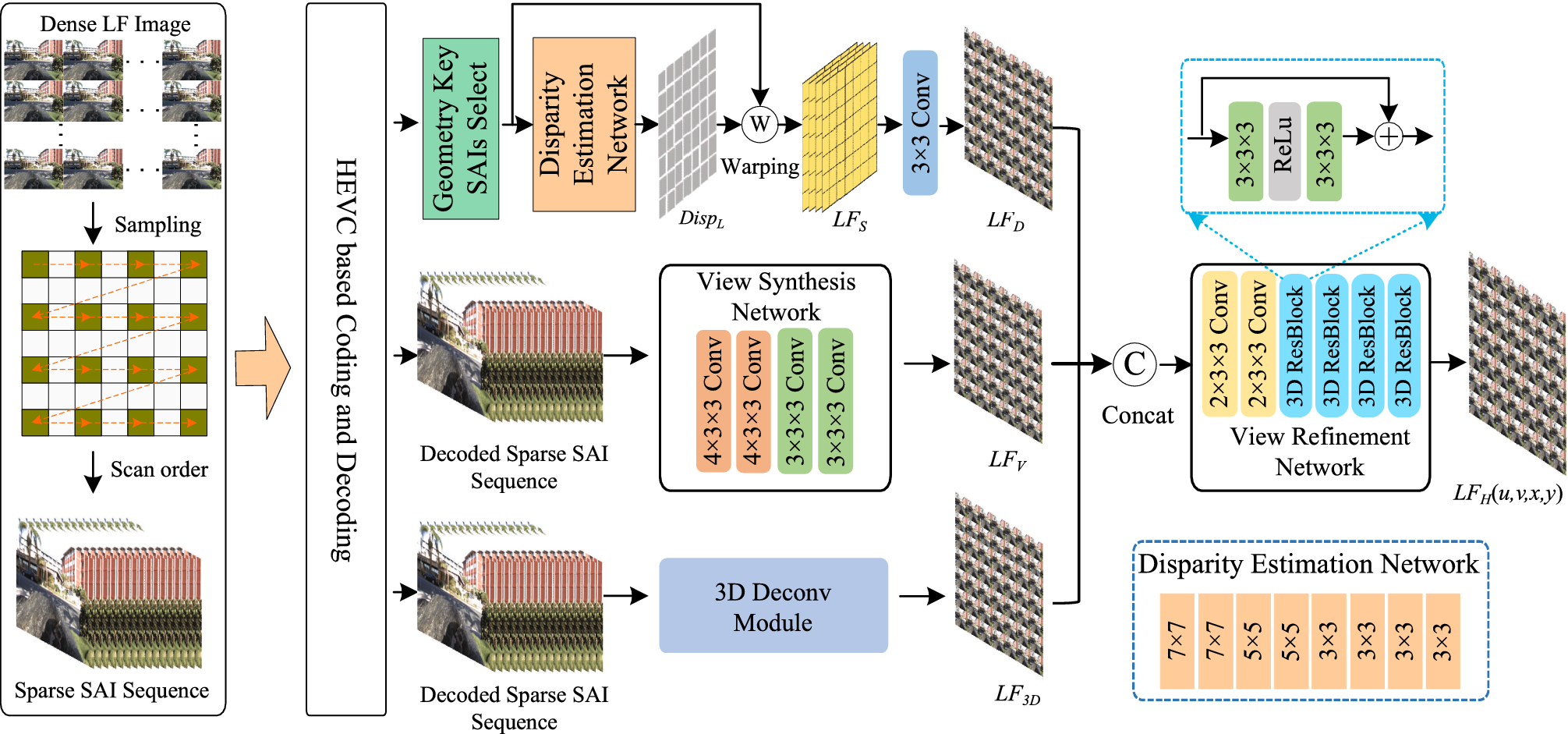

Figure 2
From: Geometry-aware view reconstruction network for light field image compression
The flowchart of the proposed LF compression method. The dense LF SAIs are firstly sparsely-sampled and compressed at the encoder side. The un-sampled SAIs are synthesized at the decoder side with the proposed geometry-aware view reconstruction network, which contains geometry-aware reconstruction and texture refinement stages.
