Figure 1 | Scientific Reports

Figure 1

From: Graph theoretical measures of fast ripple networks improve the accuracy of post-operative seizure outcome prediction

Figure 1

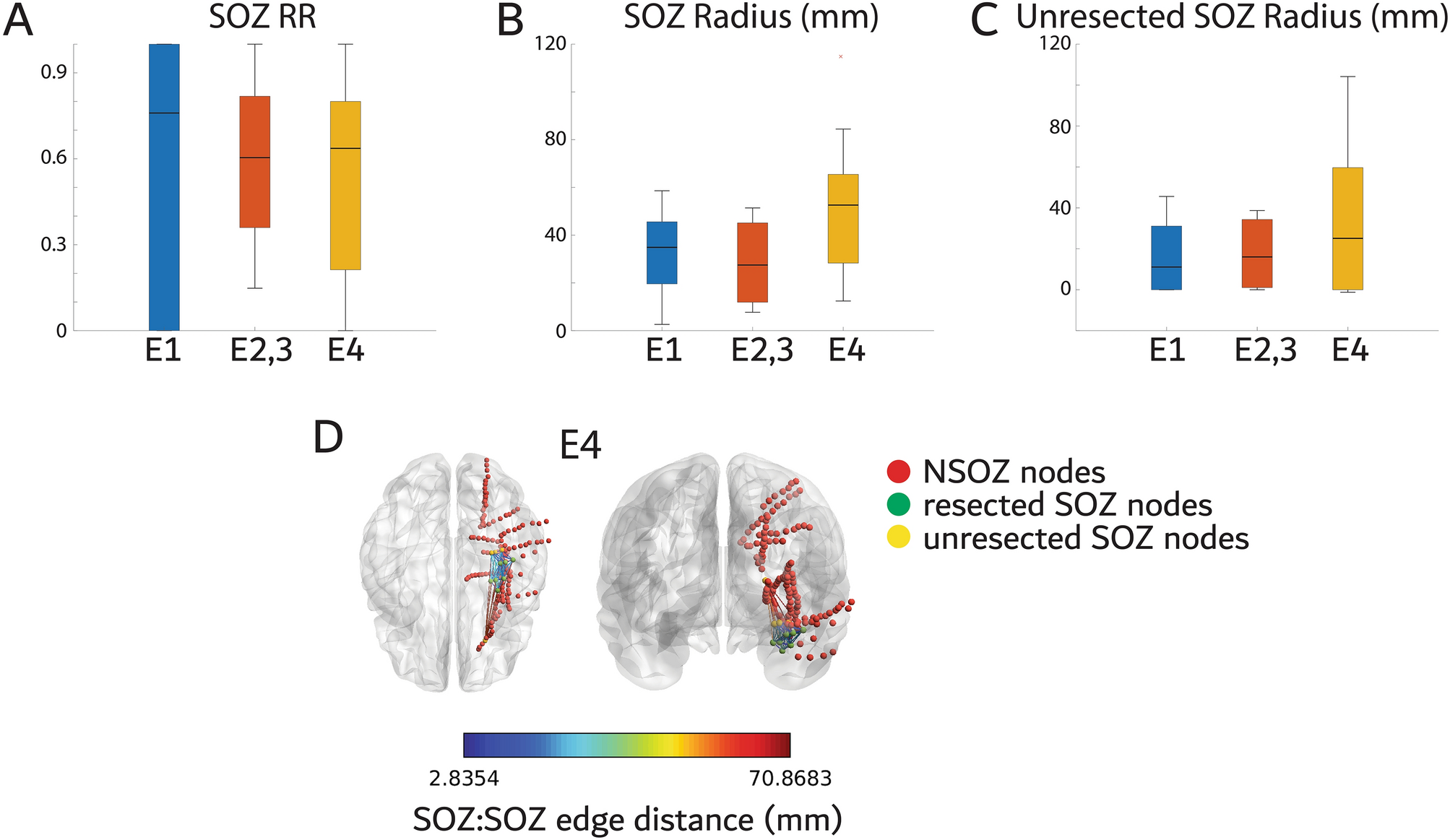

The proportion of the seizure onset zone (SOZ) resected, and the radius of the spatial network of all and unresected SOZ electrodes does not correlate with post-operative seizure outcome. (A) Box plot of the SOZ resection ratio (RR) stratified by Engel (E) outcome for all the patients in the cohort (Spearman, p > 0.05). (B) Box plot of the SOZ radius stratified by Engel outcome (Spearman, p > 0.05). (C) Box plot of the unresected SOZ radius stratified by Engel outcome (Spearman, p > 0.05). (D) Illustration of the SOZ distance network for a patient with an E4 outcome. Stereo EEG contacts in the non-SOZ are colored red, the contacts that were in the SOZ and resected are colored green and contacts that were both in the SOZ and unresected are colored yellow. The SOZ to SOZ (SOZ:SOZ) contact edges are color coded by the Euclidian distance (see color bar). The radius is calculated from the network formed by these edges.
