Figure 2
From: Enhancement of the microwave photon-magnon coupling strength for a planar fabricated resonator

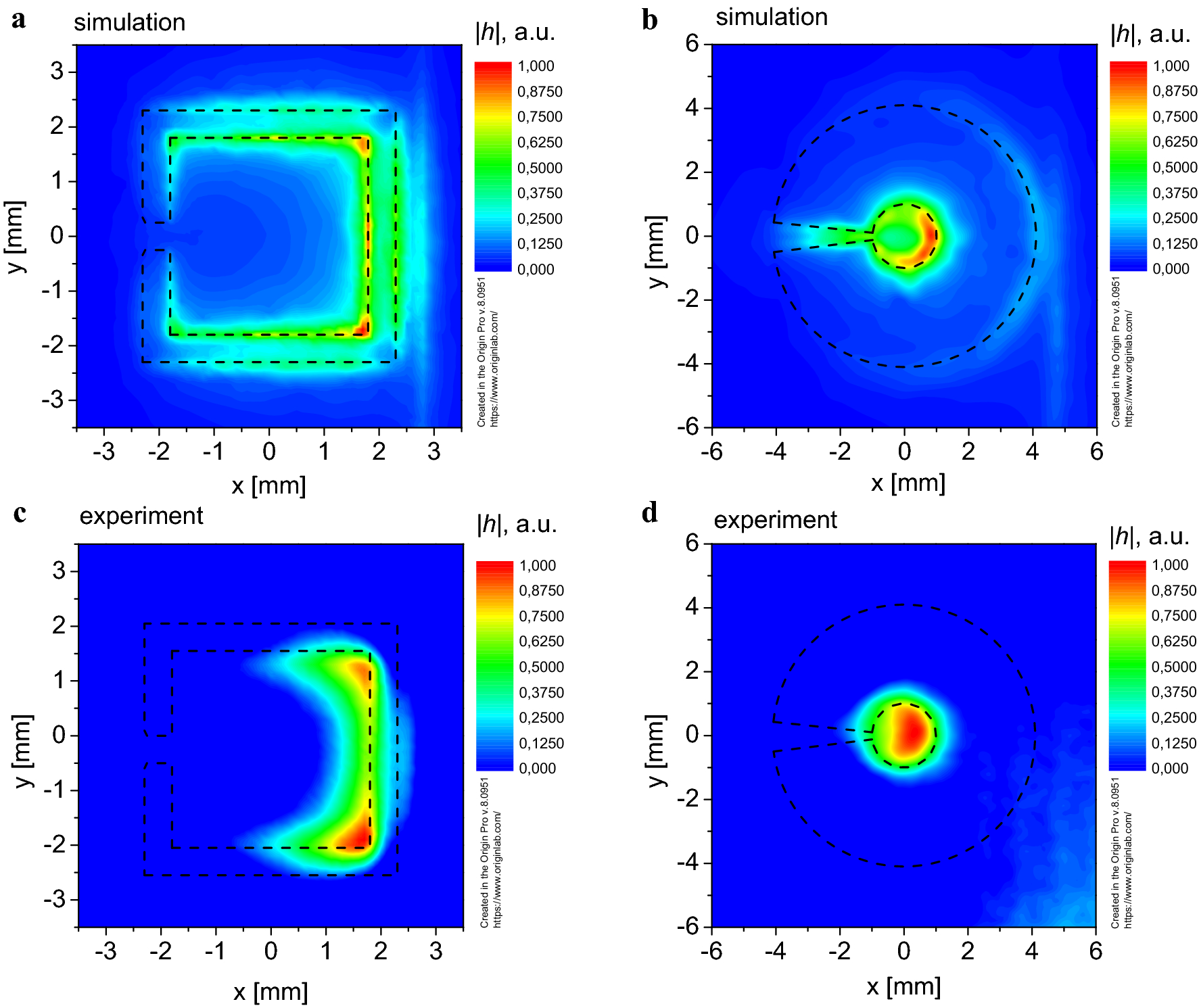

Spatial distribution of the magnetic component intensity h of the EM field in the plane of the SRR: (a) h-component, simulation for the SS-SRR; (b) h-component, simulation for the M-SRR; (c) h-component, experiment for the SS-SRR; (d) h-component, experiment for the M-SRR.
