Figure 3
From: A new class of transformable kirigami metamaterials for reconfigurable electromagnetic systems

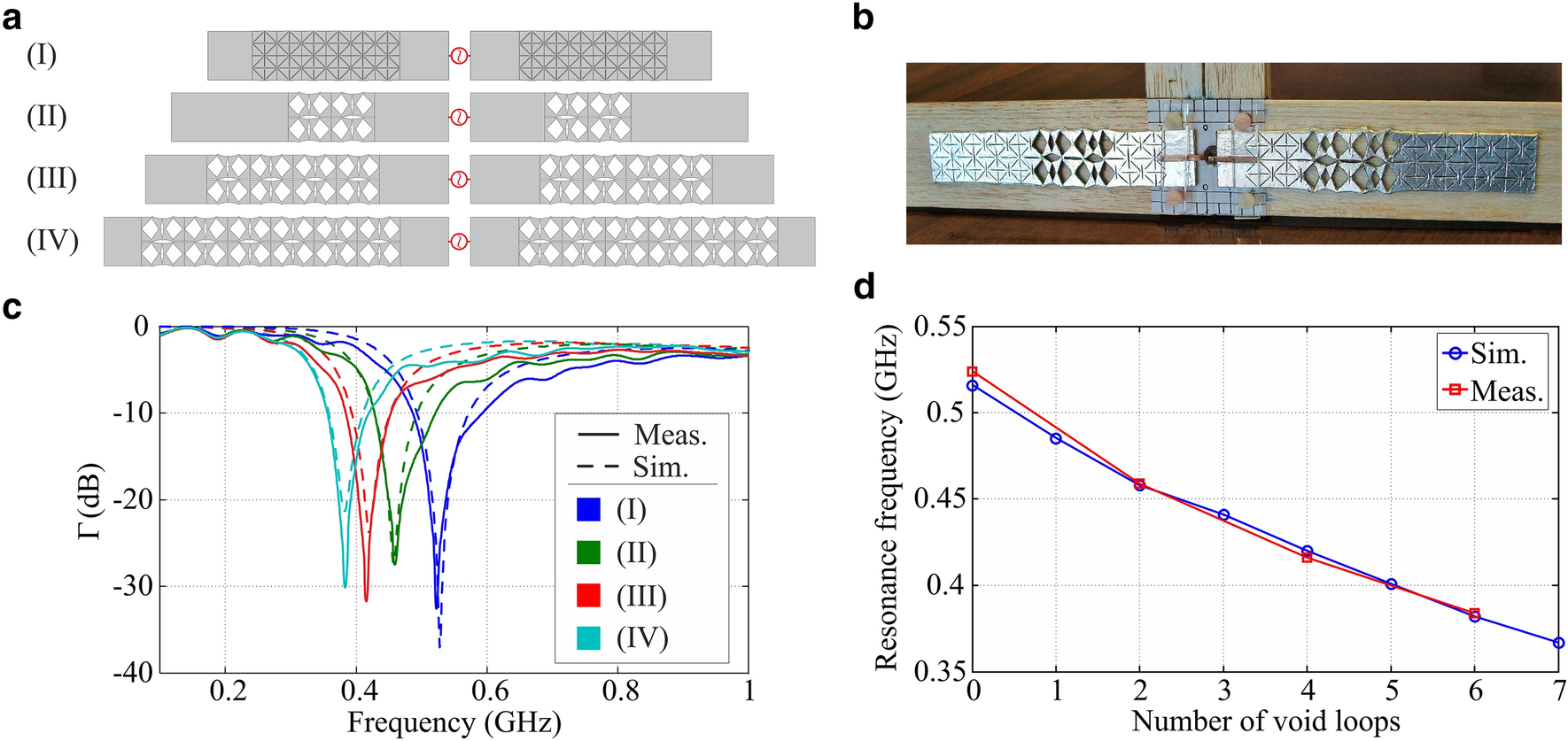

(a) Sketches of realized dipole model. (b) Sample prototype in the measurement setup. (c) Simulated and measured reflection coefficient of the tuneable dipole in the sample configurations of variable extension shown in subfigure (a). (d) Comparison of the simulated and measured range of tunability.
