Figure 4

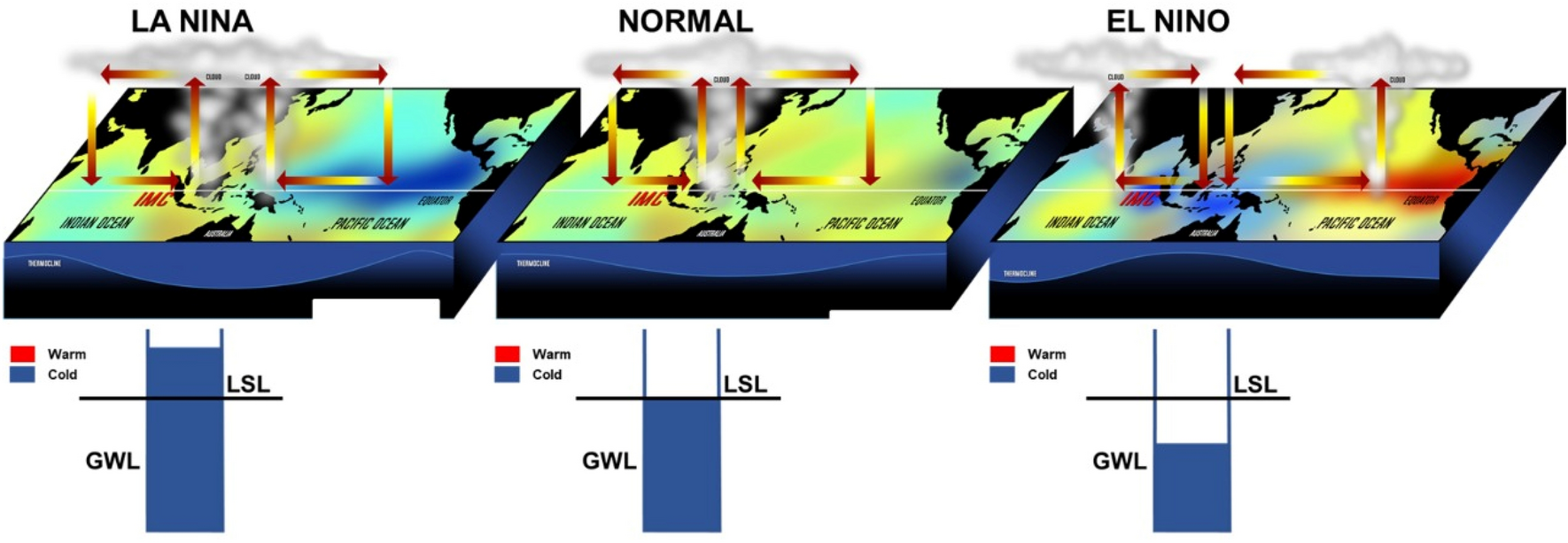

Diagram of the interconnections among energy, the water cycle, and SSTA over the IMC, Pacific Ocean, and the Indian Ocean along the equator during ENSO and IOD events. GWL is groundwater level, and LSL is land-surface level. The GWL dropped a few weeks before the El Nino event.
