Figure 2

From: Heatstroke risk informing system using wearable perspiration ratemeter on users undergoing physical exercise

Figure 2

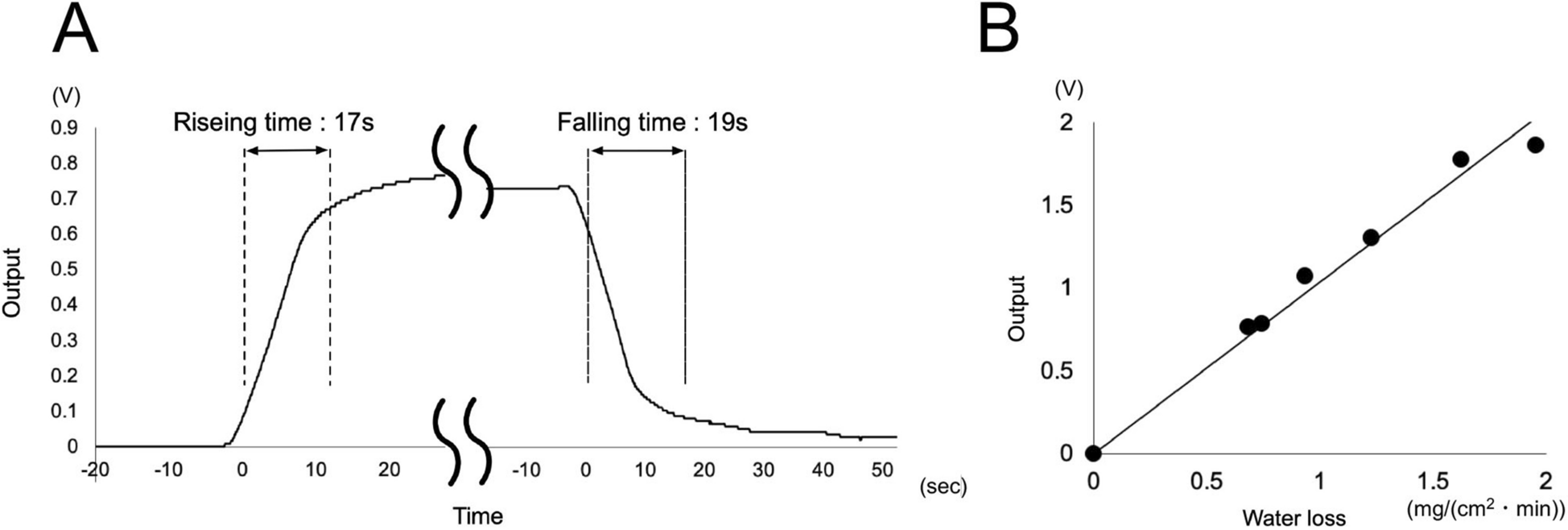

(A) Step response curve of wearable sweating ratemeter. Maximum response is obtained at approximately 17 s, and the baseline level regains the initial level after stopping the perfusion of air at 19 s. (B) Relationship between electrical output obtained with wearable ratemeter (the ordinate) and amount of water loss over 5 min (abscissa). The sensitivity of the wearable ratemeter is 1.0 V/1 mg/1 min.
