From: Expression of LIM domain-binding 3 (LDB3), a striated muscle Z-band alternatively spliced PDZ-motif protein in the nervous system

Figure 5

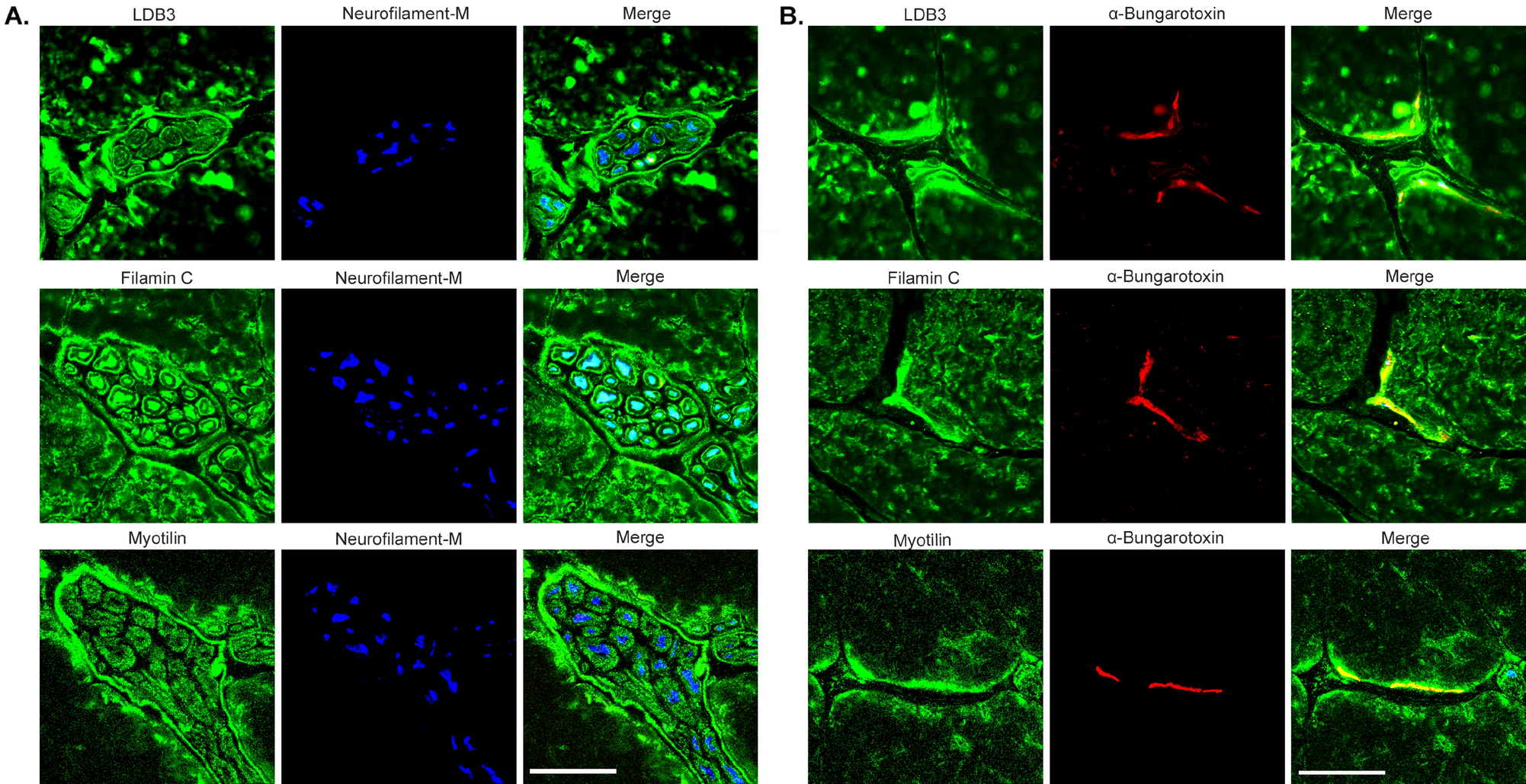

Immunolocalization of LDB3, filamin C, and myotilin in peripheral nerve and NMJ. (A, B) Representative immunofluorescence on tibialis anterior muscle cross-sections from six-month old mice (n = 6) show LDB3, filamin C, and myotilin staining (green) localized to intramuscular nerve fibers (A) and NMJs (B) marked by expression of neurofilament-M (blue) and α-Bungarotoxin (red), respectively. Scale bar (25 µm).
