Figure 3

From: 3D osteogenic differentiation of human iPSCs reveals the role of TGFβ signal in the transition from progenitors to osteoblasts and osteoblasts to osteocytes

Figure 3

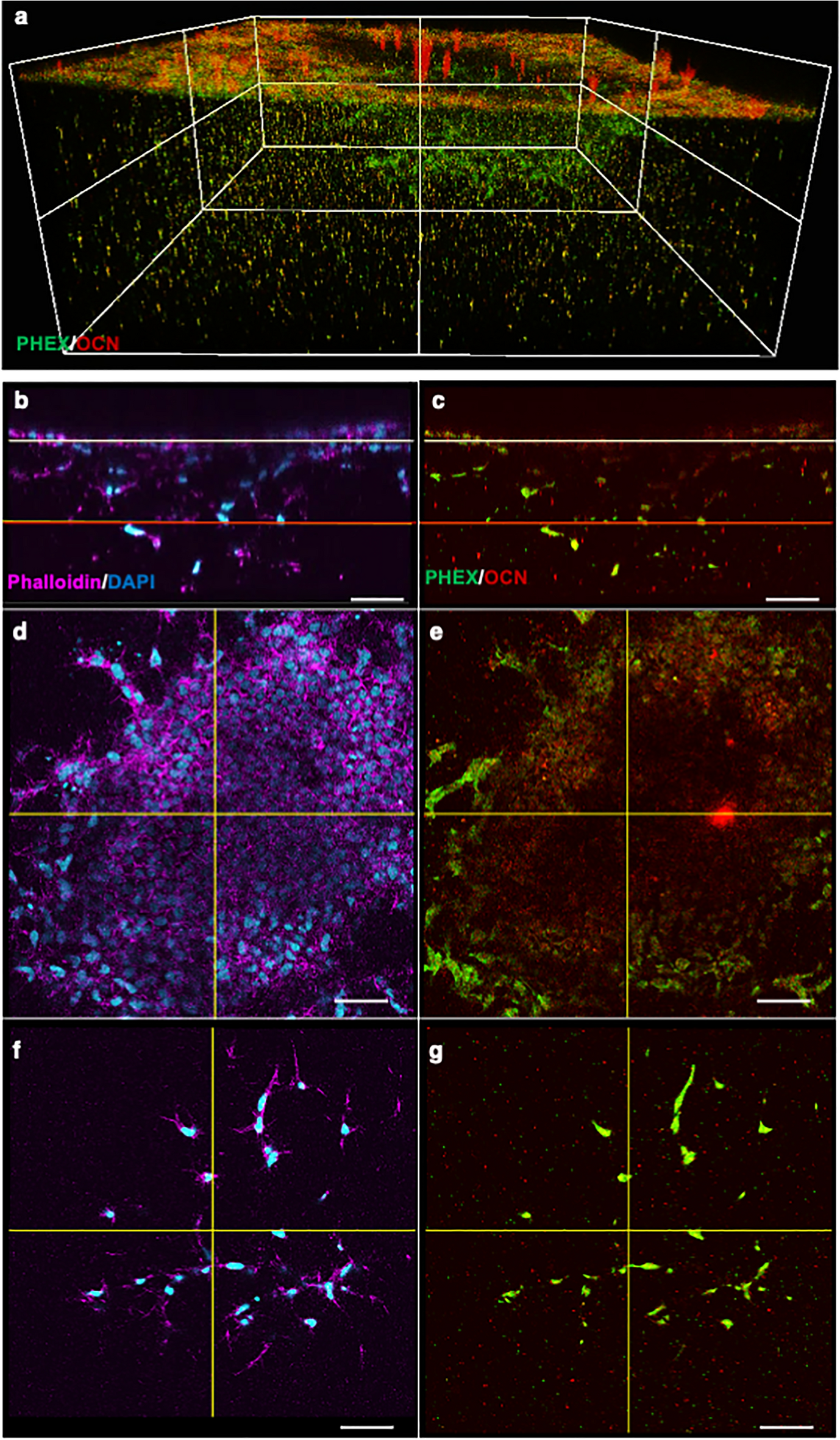

Expression of stage-related markers in 3D culture. (a) Reconstructed 3D view of confocal images at day 14. Collagen gels with induced cells (414C2) were stained with antibodies for PHEX (green) and OCN (red), and immunofluorescence images obtained by confocal analysis were reconstructed to build 3D images. (b–g) Immunofluorescence analysis by confocal imaging. Collagen gel with induced cells at day 14 were stained with Phalloidin (magenda) and DAPI (skyblue) (b,d,f) or antibodies for PHEX (green) and OCN (red) (c,e,g). Horizontal images were analyzed at surface (d,e) and deep (f,g) levels indicated by the white and red lines in (b) and (c), respectively. Scale bars = 50 μm.
