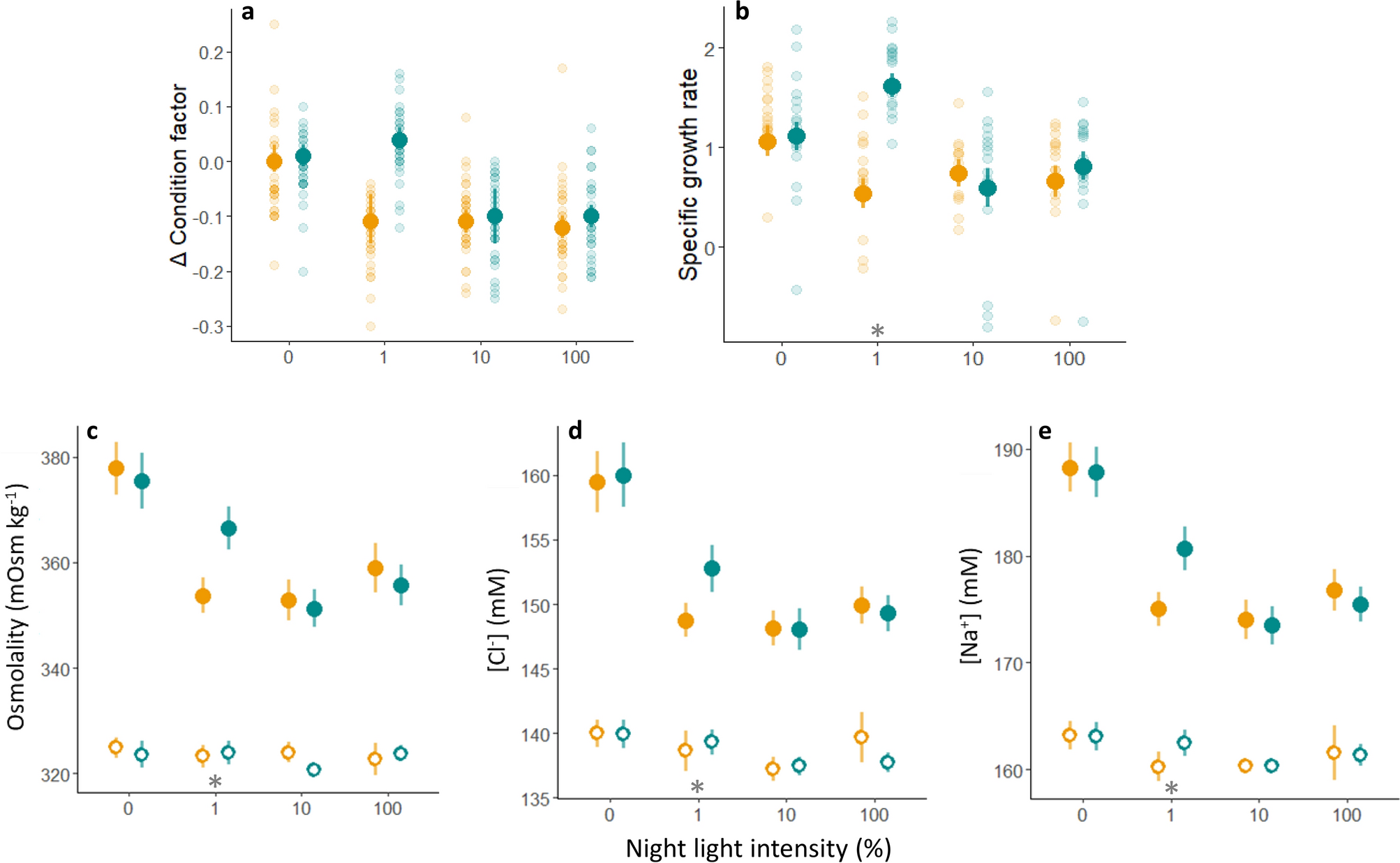

Figure 5
From: Adaptive photoperiod interpretation modulates phenological timing in Atlantic salmon
Impact of light treatment on smoltification. Fish status (a: Δ condition factor, b: specific growth rate) and plasma parameters (c: osmolality, d: [Cl−], e: [Na+]) after 22 days of exposure to light treatments. Solid points and error bars display the means ± 95% confidence intervals from GLMMs, while faded points present the individual measurements after 24 h acute exposure to 34.5 ppt seawater. Open points display the means ± 95% confidence intervals from control samples collected in freshwater. High light intensity groups are presented in orange, while the low light intensity groups are presented in green. *Denotes a significant difference between the high and low light intensity treatments after the saltwater exposure.
