Figure 8
From: Mechanical behavior analysis of fully grouted bolt under axial load

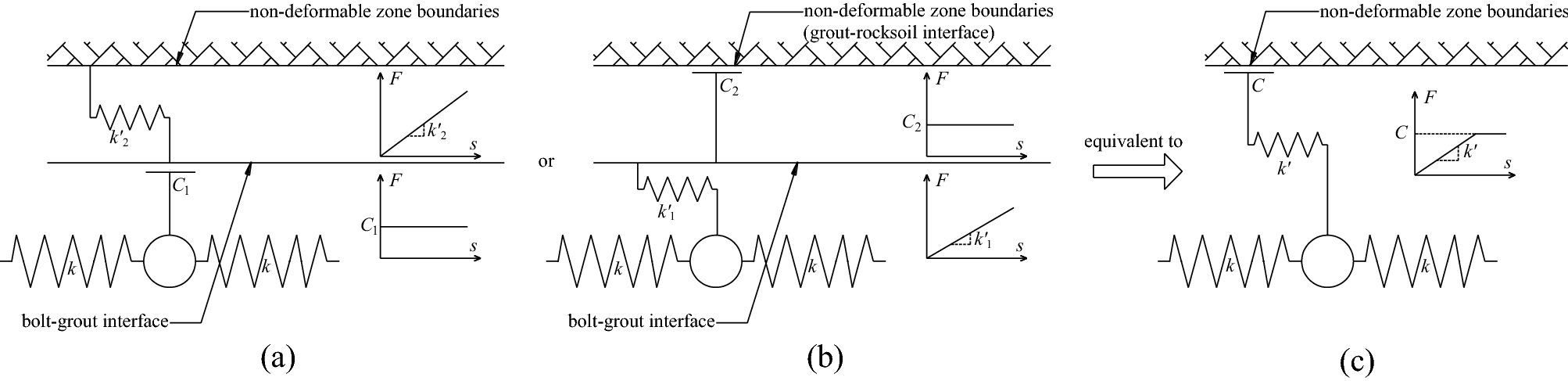

Evolution of the spring-pulled slider model. (a) When the bolt–grout interface is friction, and the grout–rocksoil interface is mechanical interlock; (b) When the bolt–grout interface is mechanical interlock, and the grout–rocksoil interface is friction; (c) The spring-pulled slider model.
