Figure 9
From: Mechanical behavior analysis of fully grouted bolt under axial load

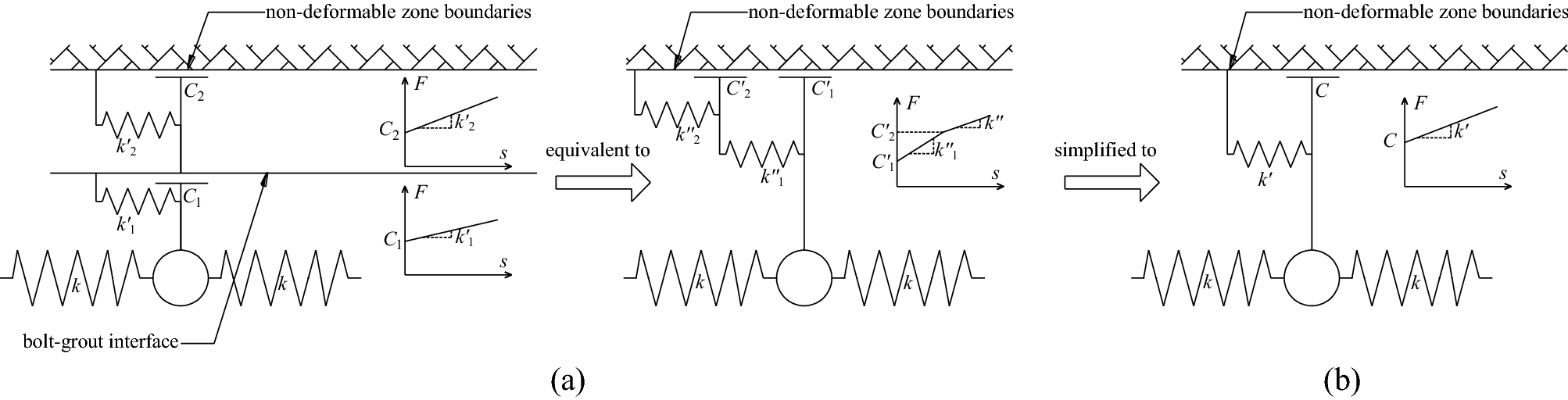

Evolution of the spring-slider model. (a) When the bolt–grout interface and the grout–rocksoil interface are both combinatorial coupling; (b) The spring-slider model.
