Figure 1

From: Heating-mediated purification of active FGF21 and structure-based design of its variant with enhanced potency

Figure 1

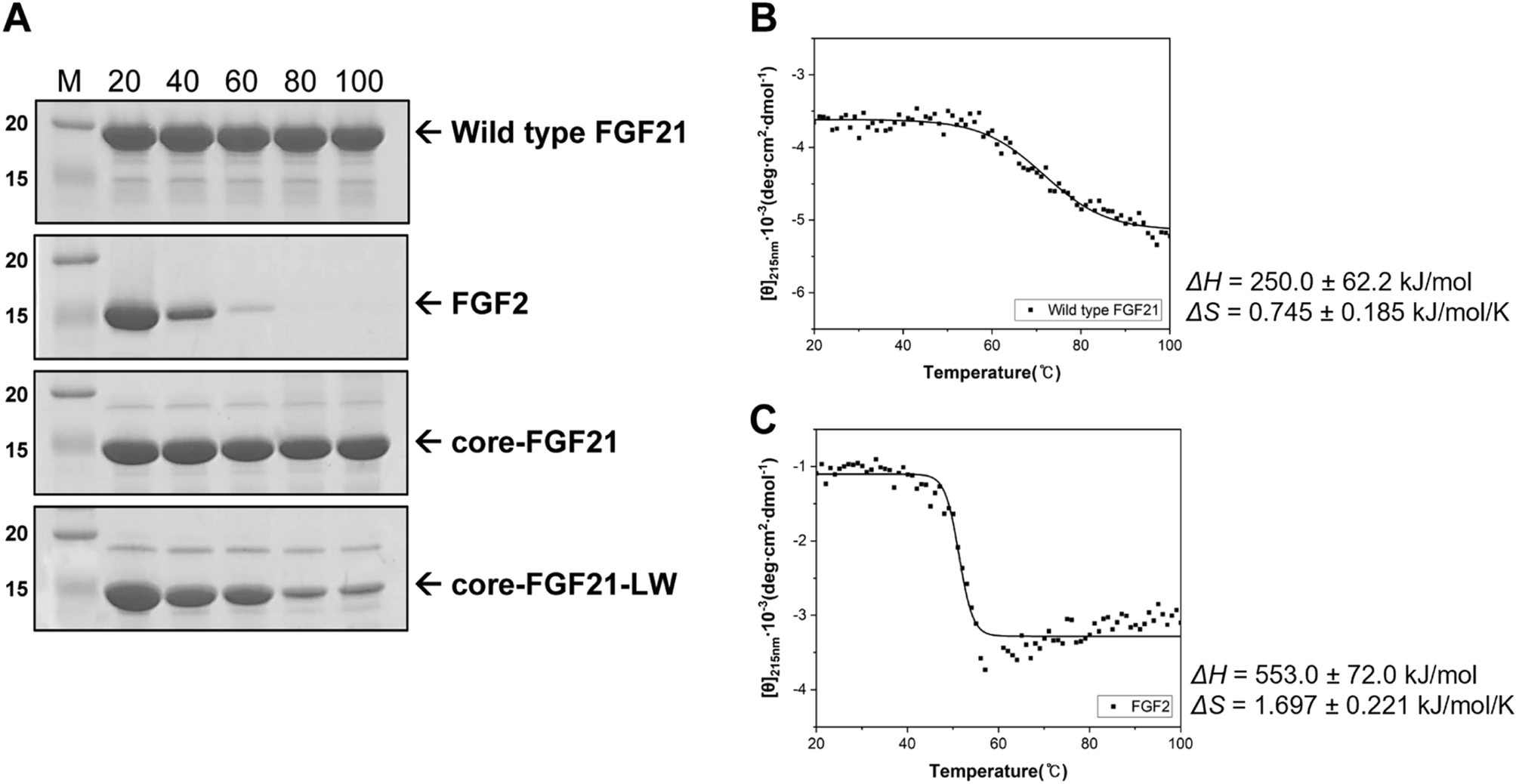

Monitoring the thermal denaturation of FGF21. (A) SDS-PAGE. M represents protein markers whose sizes are given in kDa on the left. Numbers in the top are incubation temperatures (°C). Arrows point out the position of target proteins. The original gels are presented in Supplementary Fig. S14. Thermal denaturation curves of FGF21 (B) and FGF2 (C). Spectral curves were fitted using the molar ellipticity [θ] values shown as dots.
