From: Towards a high-density photonic tensor core enabled by intensity-modulated microrings and photonic wire bonding

Figure 8

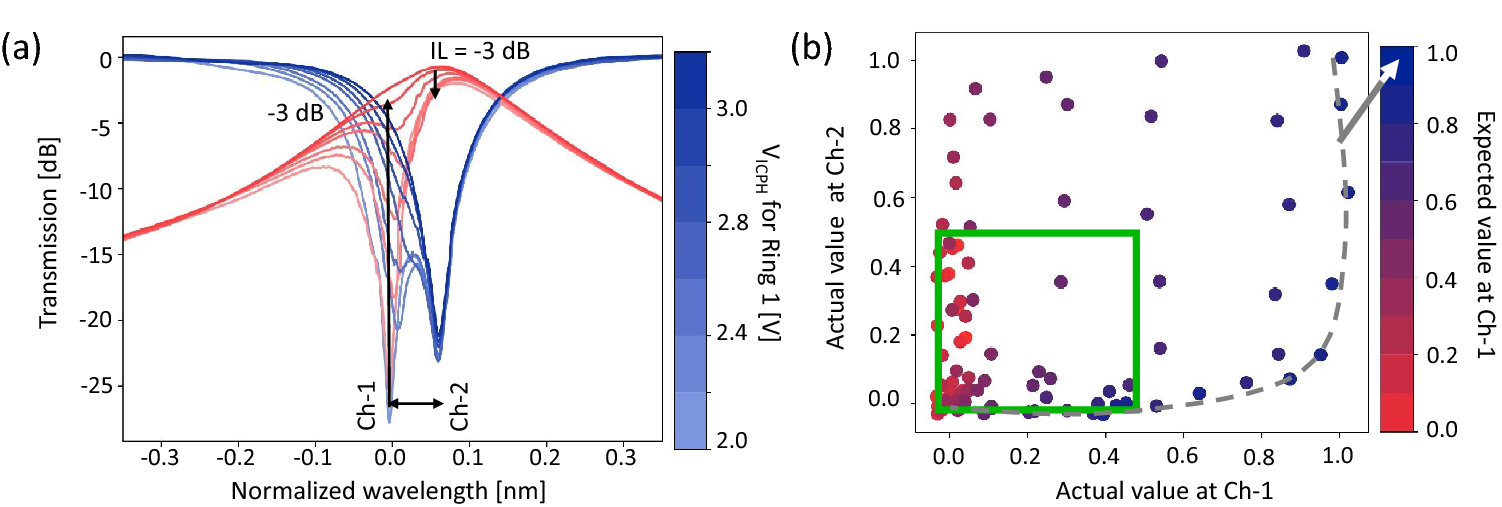

(a) Measured transmission spectra at through (blue) and drop (red) ports of Type-I systems, the X-axis represents the wavelength offset from the resonance wavelength of Ch-1. The linewidth-normalized channel spacing is set to 0.5. (b) Measured value ranges for Channel-1 and Channel-2. The green box shows the usable mapping range of [0, 0.5]. The colorbar interprets the expected value for Ch-1.
