From: Integration of meta-analysis, machine learning and systems biology approach for investigating the transcriptomic response to drought stress in Populus species

Figure 2

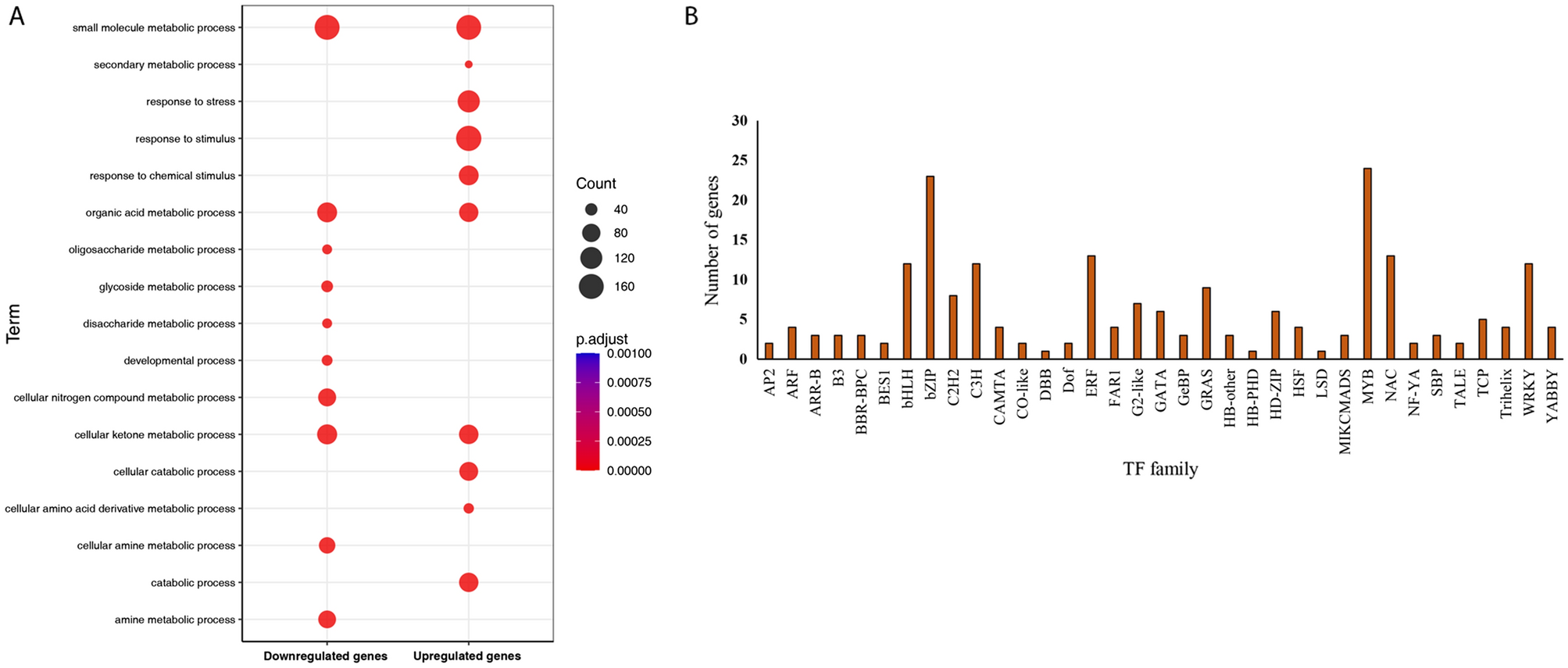

(A) Top 10 gene ontology biological processes (GO-BP) terms of the up-regulated and the down-regulated differentially expressed genes (DEGs) (B) Distribution of transcription factor (TF) families in the differentially expressed genes (DEGs). The number of genes is shown for each transcription factor family on the y-axis.
