From: Hybrid mesh for magnetotelluric forward modeling based on the finite element method

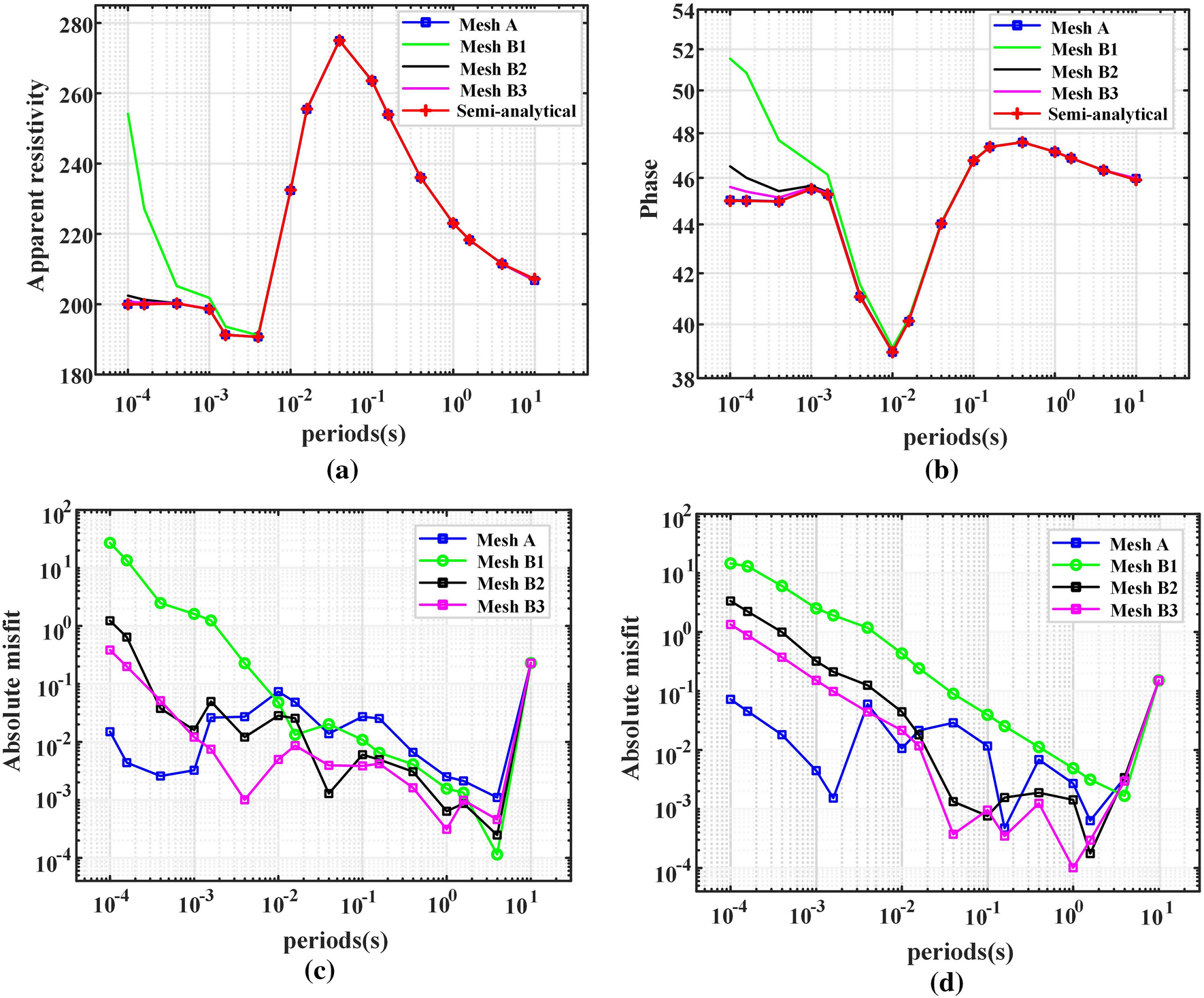

The MT responses of the three-dimensional layered model calculated with different meshes. Apparent resistivities and phases are shown in (a) and (b), respectively. The misfits of the apparent resistivities and phases are shown in (c) and (d), respectively. The absolute misfit is normalized by the semianalytic solution.
