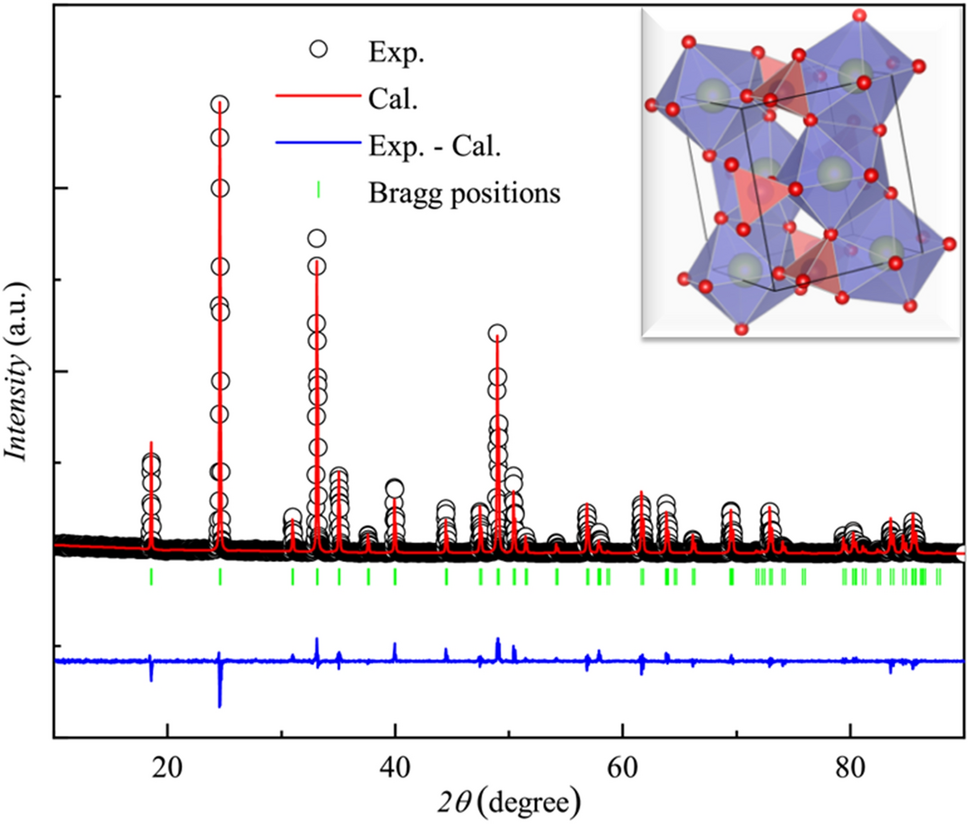

Figure 1

Rietveld refined powder-XRD pattern of TbVO₄ obtained at room temperature. The black open circles indicate the experimental data, while the Rietveld refinement fit is shown as solid red line. The solid blue line and green vertical lines show the difference curve and Bragg positions, respectively. The inset shows its crystal structure.
